How do you maintain and recalibrate force test cells for long-term testing programs?

Maintaining and recalibrating force test cells for long-term testing programmes requires a structured approach: scheduled calibration intervals, routine component inspection, and controlled handling practices. Force measurement accuracy degrades gradually through mechanical wear, thermal cycling, and load cell fatigue, making proactive maintenance essential for reproducible data. The sections below address each aspect of this process in practical detail.

What causes force measurement drift in battery test cells?

Force measurement drift in battery test cells occurs when the mechanical or electronic components of the load cell system shift from their calibrated baseline. The most common causes are creep in the load cell element itself, thermal expansion of cell hardware, and progressive wear at contact surfaces between the plunger, spring, and electrode stack.

In force test cells used for solid-state battery testing, drift is particularly relevant because these cells apply controlled uniaxial pressure to maintain contact between solid electrolyte layers and electrodes. Even small deviations in the applied force can alter interfacial resistance and affect measured capacity or coulombic efficiency. Key contributing factors include:

Thermal cycling: Repeated heating and cooling causes differential expansion in metal components, shifting the zero-load offset over time
Mechanical fatigue: High-cycle loading eventually causes micro-deformation in the load cell spring element
Surface contamination: Electrolyte residue or particulate matter on contact surfaces introduces non-uniform load distribution
Cable and connector degradation: Signal cables subject to flexing can develop intermittent resistance, introducing noise into the force readout
Overloading events: Even brief exceedances of the rated load capacity can permanently shift the calibration baseline

Understanding the root cause of drift in a specific setup is the first step before deciding on a recalibration schedule.

How often should force test cells be recalibrated?

Force test cells used in continuous long-term programmes should be recalibrated at minimum every six to twelve months, with additional checks following any event that may have affected load cell integrity. The appropriate interval depends on usage intensity, the load range applied, and whether the cell operates under static or dynamic force conditions.

For solid-state battery testing with cells such as the PAT-Cell-Solid, where precise stack pressure directly influences electrolyte contact and electrochemical performance, more frequent verification is advisable. A practical framework is:

High-intensity use (daily cycling, elevated temperatures): Recalibrate every three to six months
Standard laboratory use: Recalibrate every six to twelve months
After any mechanical shock or overload event: Recalibrate immediately before resuming measurements
After long storage periods: Verify calibration before redeployment

Recalibration intervals should also align with any institutional metrology requirements or quality management standards applicable to the laboratory.

What are the steps to recalibrate a force test cell?

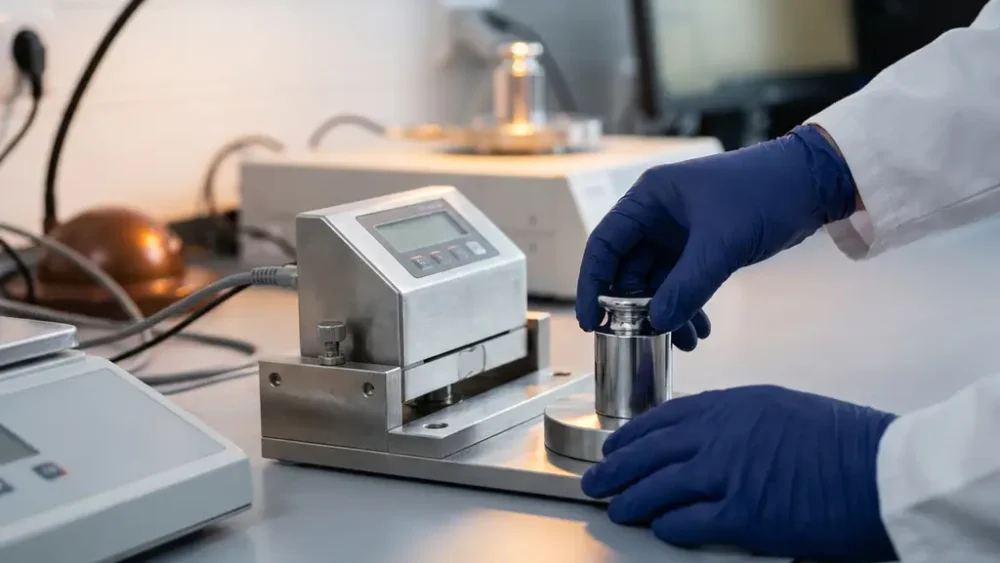

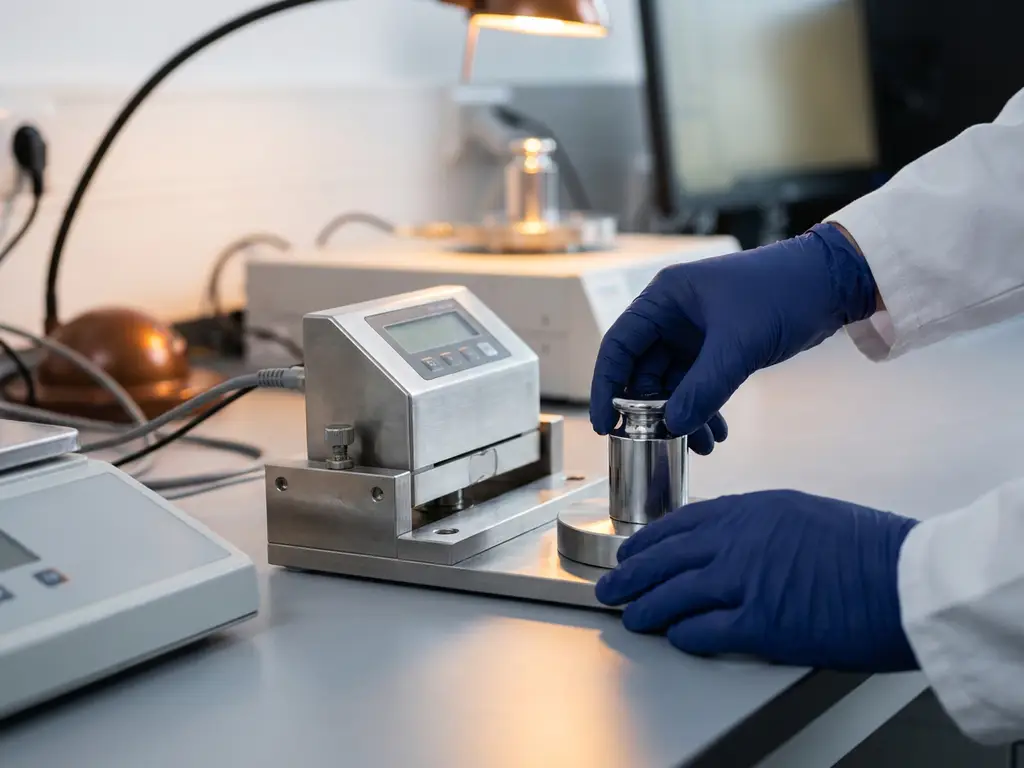

Recalibrating a force test cell involves zeroing the load cell under no-load conditions, applying a series of known reference weights or a certified force standard across the cell’s operating range, and adjusting the calibration coefficients in the associated software or amplifier until measured values match the reference. The process should be performed at the operating temperature of the cell.

A systematic recalibration procedure typically follows these steps:

Disassemble and clean the cell: Remove all electrochemical components and clean contact surfaces to eliminate any mechanical interference
Allow thermal stabilisation: Let the cell equilibrate to the target operating temperature before applying any reference loads
Zero the load cell: With no load applied, set the output signal to the defined zero reference in the measurement system
Apply certified reference loads: Use traceable calibration weights or a reference force standard at a minimum of three points across the intended operating range (typically 10%, 50%, and 100% of full scale)
Record and compare output: Log the measured force output at each reference point and calculate the deviation from the nominal value
Adjust calibration coefficients: Correct the gain and offset in the measurement software or signal conditioner to bring all points within the acceptable tolerance
Perform a final verification sweep: Repeat the reference load sequence to confirm that corrections have been applied correctly
Document the calibration record: Record the date, reference standards used, pre- and post-correction values, and the name of the person performing the calibration

Traceability to national or international measurement standards (such as those maintained by PTB in Germany or NPL in the United Kingdom) is important for laboratories operating under quality frameworks.

Which components need routine inspection during maintenance?

Routine maintenance of force test cells should cover the load cell element, the mechanical plunger assembly, sealing components, electrical connectors, and any spring or pressure-setting mechanism. Each component contributes to measurement accuracy and cell integrity in different ways.

The following components warrant specific attention during each maintenance interval:

Load cell element: Inspect for physical damage, corrosion, or visible deformation; check that the rated capacity has not been exceeded in the log data
Plunger and contact surfaces: Check for wear, scoring, or contamination that could cause non-axial loading
Seals and O-rings: Replace any seal showing compression set, cracking, or electrolyte staining, particularly in cells used with liquid electrolytes
Threaded fasteners and torque settings: Verify that all assembly fasteners are torqued to specification, as loose components introduce compliance into the force path
Signal cables and connectors: Inspect for insulation damage, bent pins, or oxidised contacts; clean connectors with appropriate contact cleaner
Pressure-setting spring or adjustment mechanism: Confirm that the spring rate has not shifted and that the adjustment mechanism operates smoothly without hysteresis

Consumable components such as seals and contact pads should be replaced on a scheduled basis rather than waiting for visible failure, as degraded consumables affect measurement quality before they become obviously faulty.

How do you verify force cell accuracy between calibration cycles?

Between formal recalibration events, force cell accuracy can be verified using a lightweight check standard: a single certified reference weight applied at a consistent load point, with the measured output compared against the expected value. If the deviation exceeds the laboratory’s defined acceptance threshold, a full recalibration is triggered.

Practical interim verification methods include:

Single-point check standard: Apply a known mass at a mid-range load point before each test session and log the deviation; trends indicate drift developing between calibrations
Repeatability checks: Apply and remove the same reference load five times in succession and compare the spread of readings; increasing variability signals mechanical wear or connector issues
Zero-load drift monitoring: Record the zero-load output at the start and end of each test session; a shifting zero indicates thermal effects or electronic drift
Cross-comparison between cells: Where multiple force test cells are available, periodic comparison of readings under identical conditions helps identify outliers

Logging these interim checks systematically allows the laboratory to build a drift history for each cell, which informs more rational decisions about recalibration frequency over time.

What storage and handling practices extend force test cell lifespan?

Force test cells last longest when stored clean, dry, and within their rated mechanical limits. The most damaging practices are applying loads beyond the rated capacity, storing cells with electrolyte residue on contact surfaces, and subjecting them to mechanical shock during transport or handling.

The following practices consistently extend the operational lifespan of force test cells:

Store with a defined preload: Some load cell designs benefit from being stored at a low, defined preload rather than at zero or at maximum; follow the manufacturer’s guidance for the specific cell type
Clean thoroughly after each use: Remove all electrolyte residue using appropriate solvents before storage; residual electrolyte is corrosive to metal surfaces and can attack seal materials
Use protective packaging for transport: Wrap cells in anti-static foam and avoid stacking heavy items on top; shock events are a primary cause of load cell element damage
Control storage environment: Store in a dry environment at a stable temperature; humidity accelerates corrosion of metal components and connector contacts
Avoid overloading at all times: Even a single overload event can permanently deform the sensing element; use load limiters or mechanical stops where possible
Maintain an asset log: Record each cell’s usage history, number of cycles, maximum loads applied, and all maintenance events; this supports informed decisions about when to retire a cell from primary use
