PAT-Tester-8
Compact Multichannel Potentiostat for Battery Testing
● 8 Test Channels with PStat/GStat and EIS
Key Features
8 independent test channels with PStat/GStat/EIS (no multiplexing)
Stackable design, can be installed in 19-inch racks
EIS frequency range: 100 μHz to 100 kHz
Control voltage: -7 V to +7 V (±0.02% of FSR)
Current: ±100 mA (±0.05% of FSR)
Full remote control via local network and EL-Software
Accuracy Contour Plot
Product Description

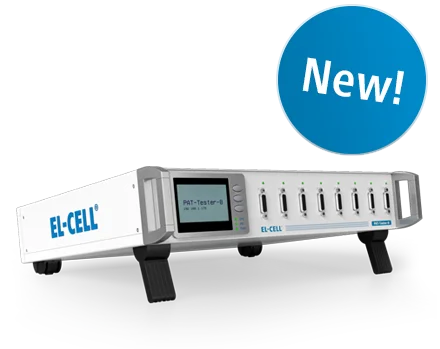

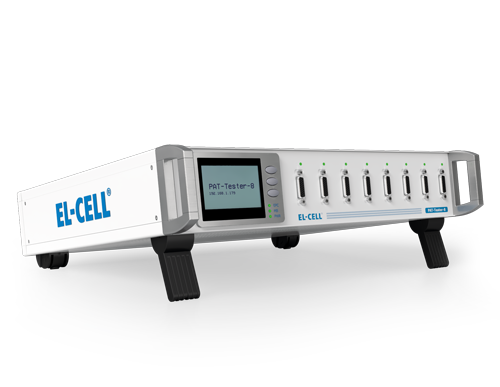

The PAT-Tester-8 delivers eight high-precision measurement channels in a compact design. Stackable and compatible with 19-inch racks, it adapts to your needs — from single-cell tests to high-throughput setups. Its state-of-the-art electronics, shared with the proven PAT-Tester-i-16 and PAT-Tester-x-8, offer fully independent potentiostat /galvanostat and EIS functions, ideal for precise measurements on small-format battery cells. Specially shielded cell cables minimise interference and ensure reliable results.
The PAT-Tester-8 comes with EL-Software, providing comprehensive tools to design, manage, and monitor your experiments with ease. It supports all EL-CELL battery test cells and can also connect to other cell formats.

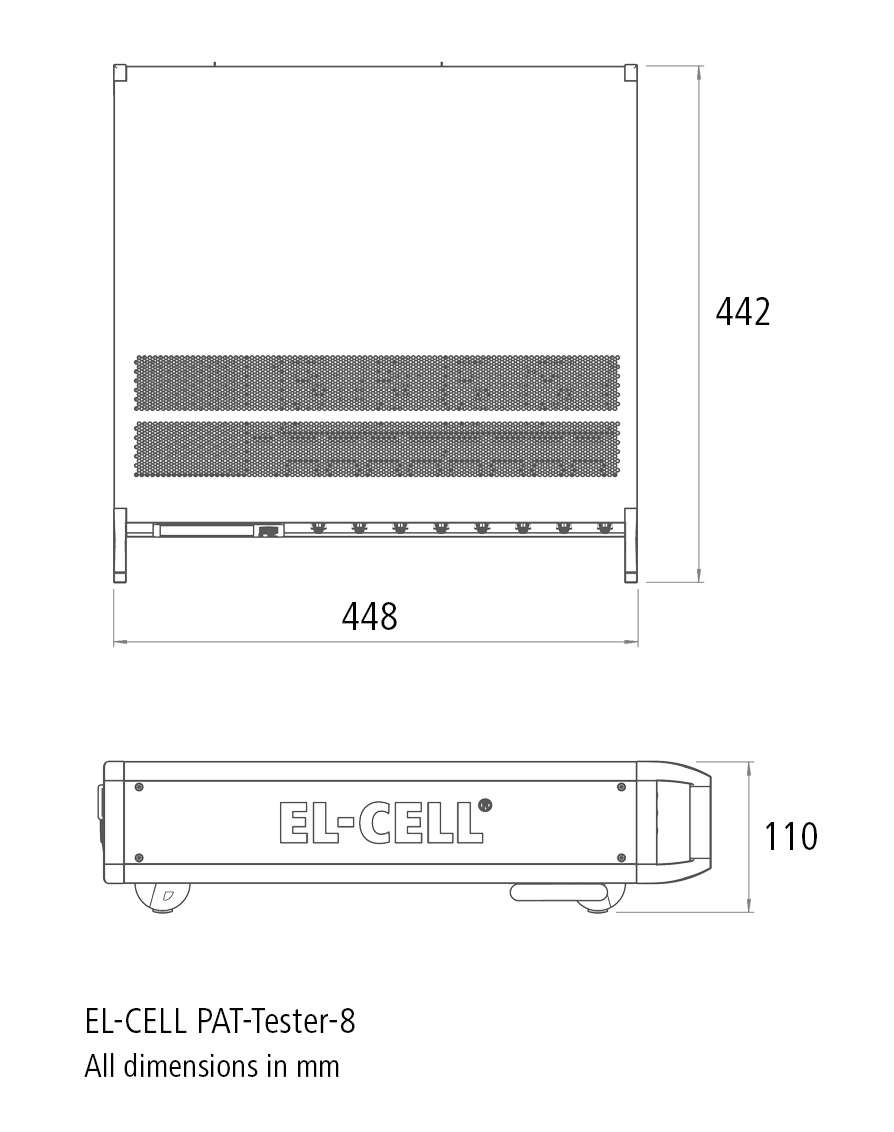

Specifications
General
| Channels per device | 8 |
| Control Voltage | -7 V to +7 V |
| Compliance Voltage | -8 V to 8 V (no load) |
| Current | ±100 mA |
| Cell connection / Electrode connection | 3 electrodes plus sense wires, Connection Matrix |
| ADC | 2 x 24 Bit |
| DAC | 1 x 18 Bit |
| Slew rate | 2.5 V / µs |
| Bandwidth ranges (Stability Factor) | 500 kHz (fast) |
| 50 kHz (medium) | |
| 5 kHz (slow) | |
| Acquisition Time (Time Base) | 1 ms |
| Computer Interface | 1 GBit Ethernet |
| Runs standalone | |
| Multiuser |
Voltage
| Acquisition voltages | Full cell voltage |
| Both half-cell voltages | |
| Auxiliary voltage | |
| Measurement accuracy | ±0.02% of FSR (Full scale range) |
| Measurement noise floor | 30 μV peak-peak typical |
| Control resolution | 57 μV (18 Bit) |
Current
| Current ranges | ±100 mA |
| ±10 mA | |
| ±1 mA | |
| ±100 μA | |
| Autorange | |
| Measurement accuracy | ±0.05% of FSR |
| Measurement noise floor | <1 μA @ 100mA |
| <100 nA @ 10mA | |
| <10 nA @ 1mA | |
| <1 nA @ 100μA | |
| Control resolution | 1 nA min. (18 Bit) |
Impedance (each channel)
| Frequency range | 100 μHz to 100 kHz |
| Impedance modes | PEIS and GEIS (each with simultaneous measurement of full- and half-cell impedances) |
| Impedance range | 1 mΩ to 100 MΩ |
| EIS quality indicator | SFDR (Spurious Free Dynamic Range) |
| EIS drift correction | yes |
| EIS adaptive amplitude | yes |
Other
| Additional data input (each channel) | Digital (I²C) sensor signal, e.g. for cell temperature |
| Analog sensor signal, e.g. for gas pressure | |
| Calibration | Fully automatic self-calibration with internal voltage reference and three internal calibration cells |
| Software | EL-Software with : |
| Experiment designer | |
| Cell and material management with database | |
| Script editor | |
| Live data monitoring | |
| Analysing and reporting capabilities | |
| Cell Identification | PAT-Button with unique serial number stored in EEPROM |
| Display | LC display for showing defined cell parameters and channel information |
Documentation
| Type | Release | Date | File Format | Size | ||
 | Data Sheet | October 2026 | 1 MB | Download |
Battery Test Cell for Measuring Gas Evolution / Consumption
The PAT-Tester-8 delivers eight high-precision measurement channels in a compact design. Stackable and compatible with 19-inch racks, it adapts to your needs — from single-cell tests to high-throughput setups. Its state-of-the-art electronics, shared with the proven PAT-Tester-i-16 and PAT-Tester-x-8, offer fully independent potentiostat /galvanostat and EIS functions, ideal for precise measurements on small-format battery cells. Specially shielded cell cables minimise interference and ensure reliable results.
The PAT-Tester-8 comes with EL-Software, providing comprehensive tools to design, manage, and monitor your experiments with ease. It supports all EL-CELL battery test cells and can also connect to other cell formats.
PAT-Tester-8 Overview
Features
8 independent test channels with PStat/GStat/EIS (no multiplexing)
Stackable and compatible with 19-inch racks EIS frequency range: 100 μHz to 100 kHz Control voltage: -7 V to +7 V (±0.02% of FSR) Current: ±100 mA (±0.05% of FSR) Full remote control via local network and EL-SoftwareSpecifications
Accuracy Contour Plot
General
| Channels per device | 8 |
| Control Voltage | -7 V to +7 V |
| Compliance Voltage | -8 V to 8 V (no load) |
| Current | ±100 mA |
| Cell connection / Electrode connection | 3 electrodes plus sense wires, Connection Matrix |
| ADC | 2 x 24 Bit |
| DAC | 1 x 18 Bit |
| Slew rate | 2.5 V / µs |
| Bandwidth ranges (Stability Factor) | 500 kHz (fast) |
| 50 kHz (medium) | |
| 5 kHz (slow) | |
| Acquisition Time (Time Base) | 1 ms |
| Computer Interface | 1 GBit Ethernet |
| Runs standalone | |
| Multiuser |
Voltage
| Acquisition voltages | Full cell voltage |
| Both half-cell voltages | |
| Auxiliary voltage | |
| Measurement accuracy | ±0.02% of FSR (Full scale range) |
| Measurement noise floor | 30 μV peak-peak typical |
| Control resolution | 57 μV (18 Bit) |
Current
| Current ranges | ±100 mA |
| ±10 mA | |
| ±1 mA | |
| ±100 μA | |
| Autorange | |
| Measurement accuracy | ±0.05% of FSR |
| Measurement noise floor | <1 μA @ 100mA |
| <100 nA @ 10mA | |
| <10 nA @ 1mA | |
| <1 nA @ 100μA | |
| Control resolution | 1 nA min. (18 Bit) |
Impedance (each channel)
| Frequency range | 100 μHz to 100 kHz |
| Impedance modes | PEIS and GEIS (each with simultaneous measurement of full- and half-cell impedances) |
| Impedance range | 1 mΩ to 100 MΩ |
| EIS quality indicator | SFDR (Spurious Free Dynamic Range) |
| EIS drift correction | yes |
| EIS adaptive amplitude | yes |
Other
| Additional data input (each channel) | Digital (I²C) sensor signal, e.g. for cell temperature |
| Analog sensor signal, e.g. for gas pressure | |
| Calibration | Fully automatic self-calibration with internal voltage reference and three internal calibration cells |
| Software | EL-Software with : |
| Experiment designer | |
| Cell and material management with database | |
| Script editor | |
| Live data monitoring | |
| Analysing and reporting capabilities | |
| Cell Identification | PAT-Button with unique serial number stored in EEPROM |
| Display | LC display for showing defined cell parameters and channel information |
