PAT-Cell-Twin-Ref
Specialized PAT-Cell for testing simultaneously with two reference electrodes.
The PAT-Cell-TwinRef is a special version of the PAT-Cell supporting the use of a second reference electrode. This way you can simultaneously measure with two reference electrodes, for instance with LFP and LTO. Since both ring electrodes are arranged face-to-face, their SOC can be easily adjusted.

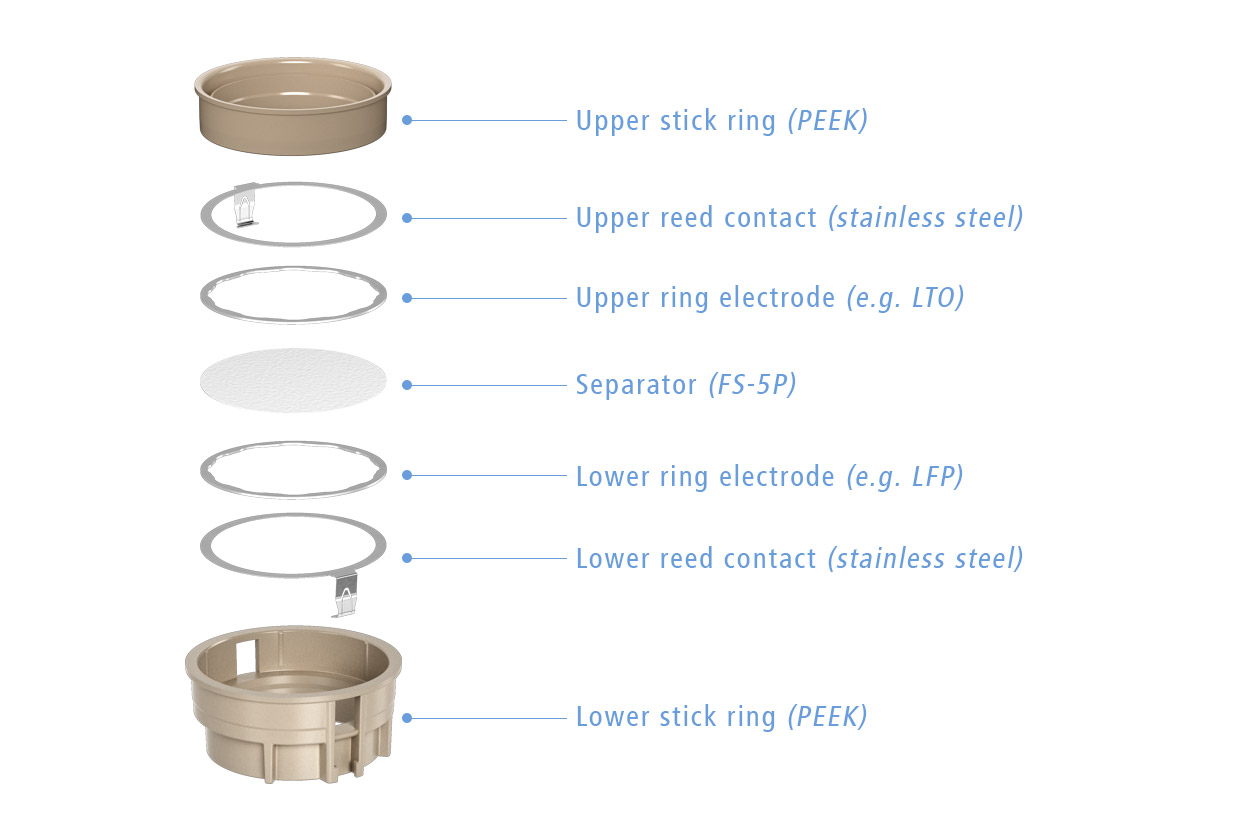

The image below shows the components of the specialized PAT-Core design for the PAT-Cell-TwinRef.
Component overview of the PAT-Cell-TwinRef insulation sleevesPAT-Cell-TwinRef Overview
Features
Ability for conducting long-term half cell measurements with two reference electrodes
No need for cleaning or drying cell components due to single-use concept Compatible with any potentiostat or battery tester.Specifications
| Diameter | 49.5 mm |
| Height | 73.1 mm |
| Weight | 0.4 kg |
| Electrode diameter | 18 mm |
| Temperature resistance | -20 to 70° C |
Compatible PAT docking stations
| Features of the PAT-Cell-Twin-Ref | Docking / Test station | Docking / Test station | |
| Docking / Test station | Charge | Discharge | Impedance |
| PAT-Stand-1 U | |||
| All other |
Gallery

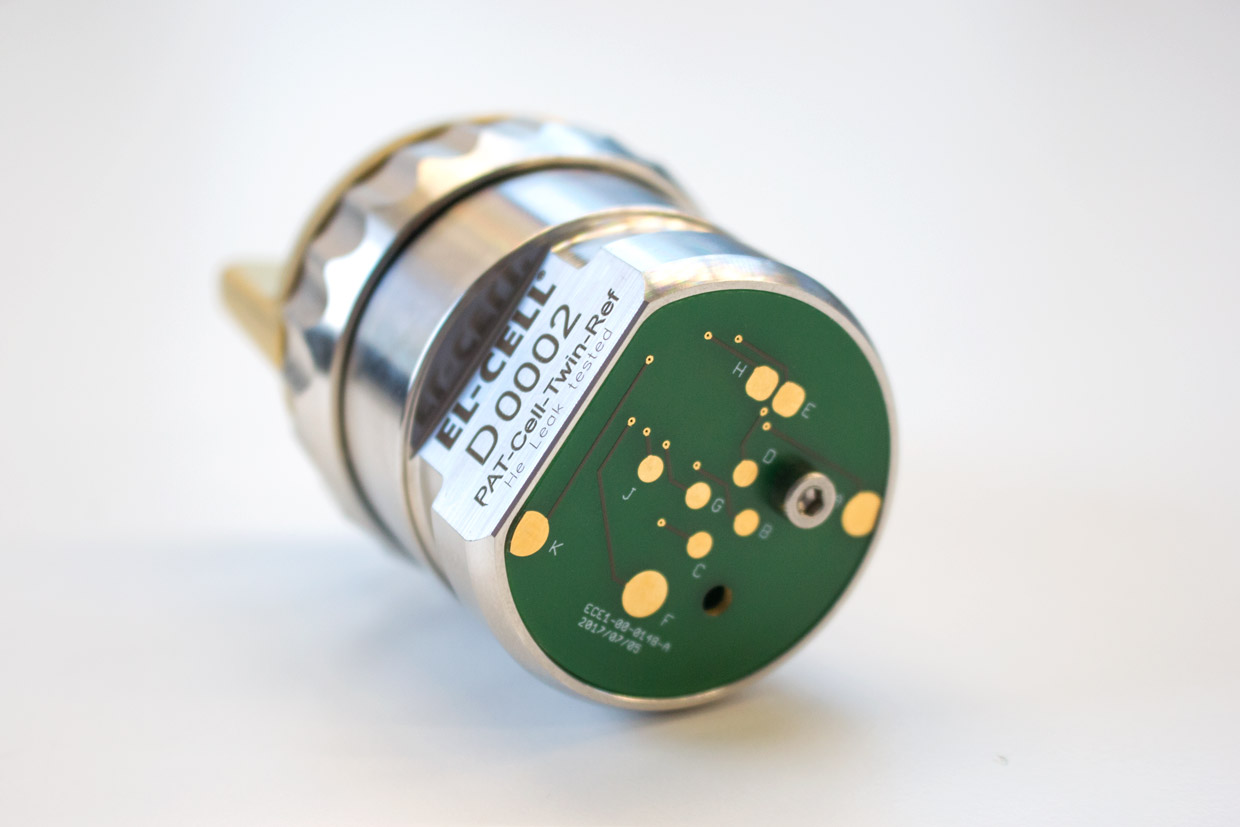

All connections/ signals of the PAT-Cell-TwinRef are available at the cell bottom. Related Products
PAT-Stand-1 U
Single channel docking station with flexible signal assignment for specialized PAT-Cells.
