PAT-Terminal-1
Powerful assistance in the glovebox
The PAT Terminal-1 greatly simplifies your workflow when assembling PAT series test cells in the glove box. It is an advanced PAT-Channel-1 that can perform impedance measurements and other quick functional tests of your test cells as a stand-alone device.

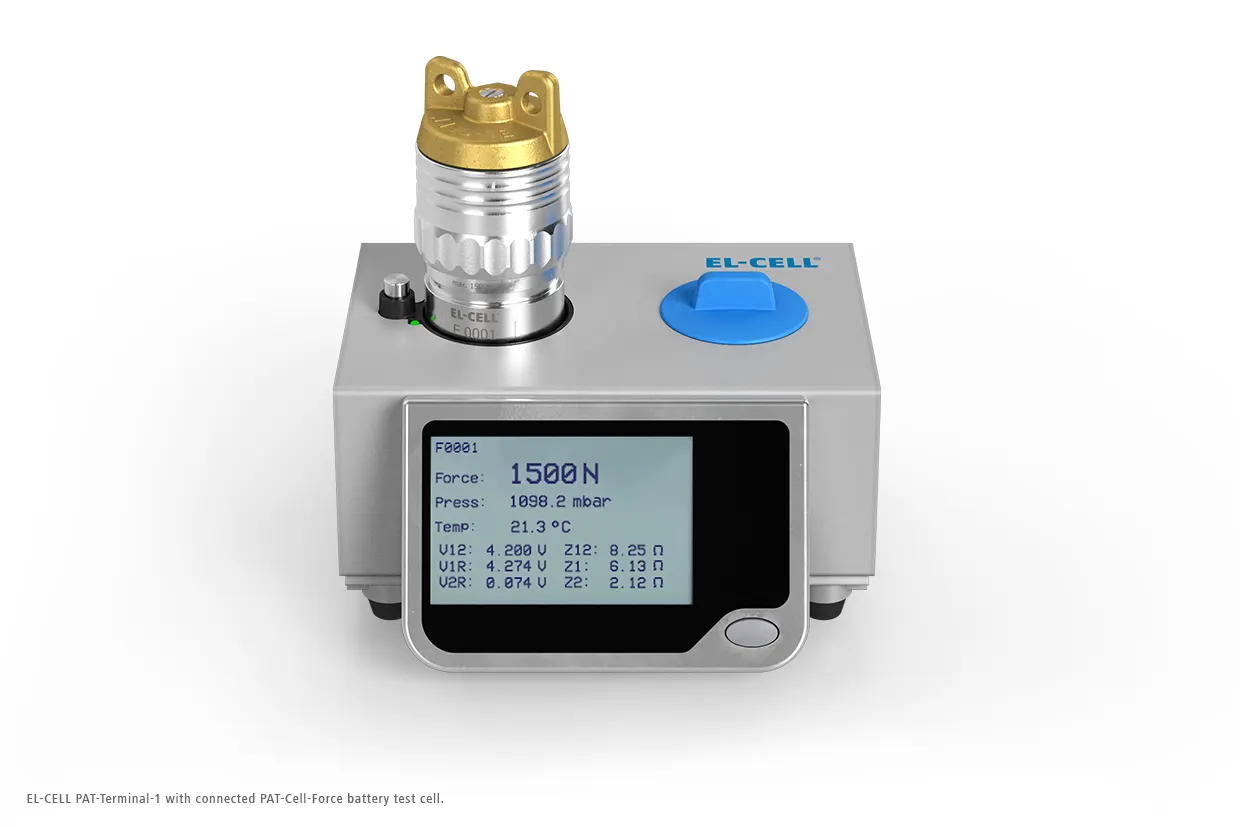

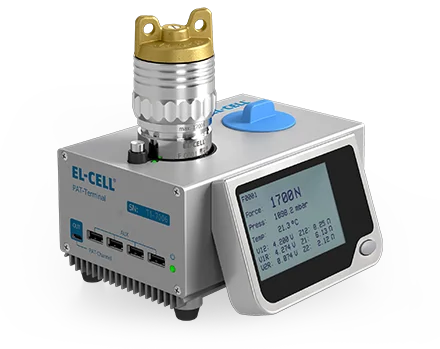

Insert the newly built cell into the PAT-Terminal-1 and directly read the electrical values and sensor signals like force, pressure, or dilation on the large display.
This allows you to make precise sensor adjustments for in-situ cells such as the PAT-Cell-Force directly in the glove box or to check the electrical values immediately after assembly.
Of course, the PAT-Terminal-1 is also a fully equipped test channel with all PStat / GStat / EIS abilities and can be connected as usual to the controller unit of a PAT-Tester-x-8.
Product overview
Features
Fully equipped test channel with PStat / GStat / EIS, +-7V control voltage, 100 mA current Can be operated as a stand-alone device directly in the glovebox. Can perform cell functionality checks (e.g. impedance) Integrated display showing live data of inserted test cell Can be used as test channel in a PAT-Tester-x-8 setup
(Last update: November 2023)
Length | 164 mm |
Height | 97 mm |
Width | 141 mm |
Weight | 1.5 kg |
Temperature operation range | -20 to + 40 °C |
Humidity | Non-condensing |
Accuracy Contour Plot
General
# Channels per device | 1 |
Control Voltage | -7 V to +7 V |
Compliance Voltage | -8 V to 8 V (no load) |
Current | ±100 mA |
Cell connection / Electrode connection | 3 electrodes plus sense wires, Connection matrix |
ADC | 2 x 24 Bit |
DAC | 1 x 18 Bit |
Bandwidth ranges | 500 kHz |
50 kHz | |
5 kHz | |
Slew rate | 2.5 V / µs |
Sampling interval (rate) | 1 ms |
Input Impedance | >100 MΩ || 20 pF |
Computer Interface | 1 GBit Ethernet, Runs standalone, Multiuser |
Voltage
Acquisition voltages | Full cell voltage |
Both half cell voltages | |
Auxiliary voltage | |
Measurement Accuracy | ±0.02% of FSR |
Measurement Noise floor | 30 μV peak-peak typical |
Control Resolution | 57 μV (18 Bit) |
Current
Current Ranges | ±100 mA |
±10 mA | |
±1 mA | |
±100 μA | |
Autorange | |
Measurement Accuracy | ±0.05% of FSR |
Measurement Noise floor | <1 μA @ 100mA |
<100 nA @ 10mA | |
<10 nA @ 1mA | |
<1 nA @ 100μA | |
Control Resolution | 1 nA min. (18 Bit) |
Impedance (each channel)
Frequency range | 100 μHz to 100 kHz |
Impedance mode | PEIS and GEIS (simultaneous measurement of full- and half-cell impedances |
Impedance range | 1 mΩ to 100 MΩ |
EIS quality indicator | SFDR (Spurious Free Dynamic Range) |
EIS drift correction | yes |
EIS adaptive amplitude | yes |
Other
Additional Measurement (each channel) | Digital (I²C) sensor signal, e.g. for cell temperature |
Analog sensor signal, e.g. for gas pressure | |
Calibration | Fully automatic self-calibration with internal voltage reference and three internal calibration cells |
Software | EL-Software with : |
Experiment designer | |
Cell and material management with database | |
Script editor | |
Live data monitoring | |
Analysing and reporting capabilities | |
Cell Identification | PAT-Button with unique serial number stored in EEPROM |
PAT-Terminal-1 User Manual | ||
Release | 1.12 | |
Date | November 2023 | |
Type | ||
Size | 1.0 MB | |
Download |
