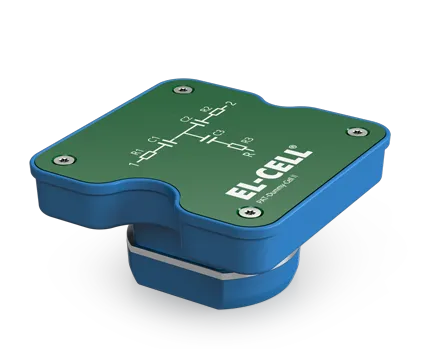

PAT-Dummy-Cell II
Basic battery cell for performing functional tests of your PAT-Tester
Product Overview
The PAT Dummy Cell II is ideal for trying out the test scripts supplied with EL software. The cell is also perfect for developing your scripts. The supercapacitors, which act as electrodes, can be fully charged and discharged in a matter of seconds. This allows changes to a script to be tested quickly before the script is applied to a real battery. The cell is designed to withstand overcurrent and overvoltage in our PAT-Testers.
The PAT-Dummy-Cell II is a passive electrical circuit composed of three supercapacitors connected in a star configuration. The cell is primarily intended for testing and debugging test scripts. All test scripts pre-installed in EL-Software run unchanged on this cell.

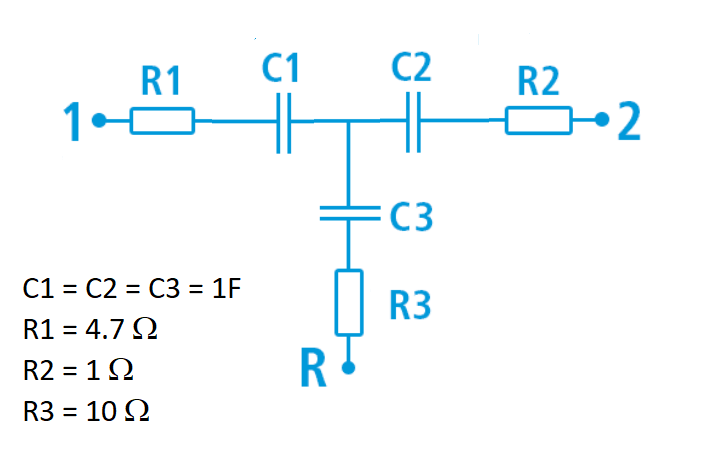

The cell is a simple model of a battery with 3 electrodes. Electrode 1 is represented by the series connection R1 C1, electrode 2 by R2 C2, and electrode R by R3 C3. The PAT-Dummy-Cell II is protected against damage by two anti-parallel diodes arranged in parallel with each supercapacitor. These diodes limit the maximum voltage across the capacitors. In the range from -1 to +1 V, the current through the diodes can be neglected.
PAT-Dummy-Cell II Overview
Specifications
| PAT-Dummy-Cell II | ||
| Height | 36 mm | |
| Width | 68 mm | |
| Depth | 68 mm | |
| Electric component values | ||
| R1 | 4.7 Ohm | |
| R2 | 1 Ohm | |
| R3 | 10 Ohm | |
| C1 | 1 F | |
| C2 | 1 F | |
| C3 | 1 F |
