Stack pressure is one of the most consequential variables in solid-state battery (SSB) testing, yet it is frequently treated as a secondary consideration. In reality, the mechanical state of a solid-state cell directly determines whether the electrochemical data it produces reflects true material behaviour or experimental artefact. This article builds from the physical origins of stack pressure through to practical guidance on matching pressure conditions to specific research objectives.
What is stack pressure and why does it exist in solid-state batteries?

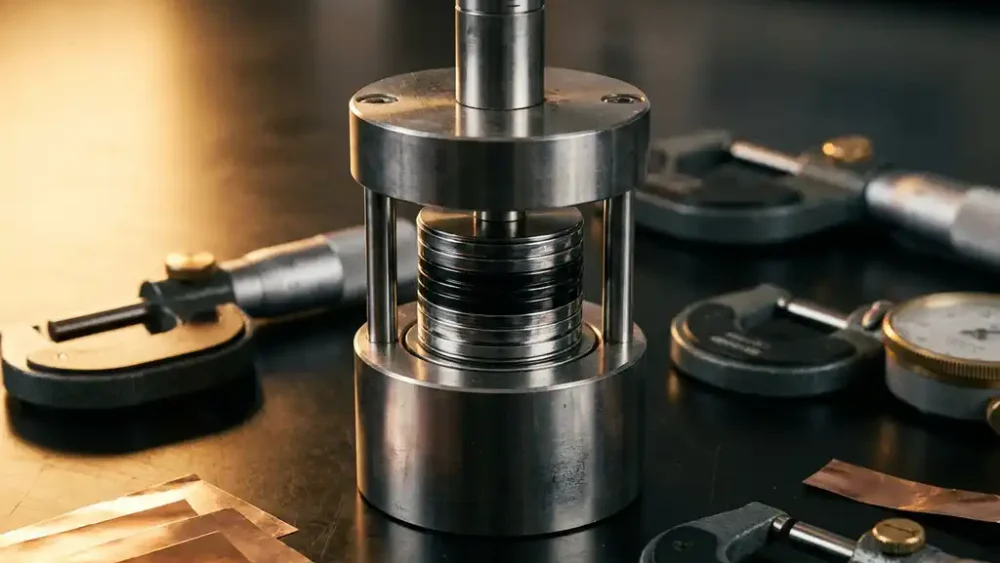

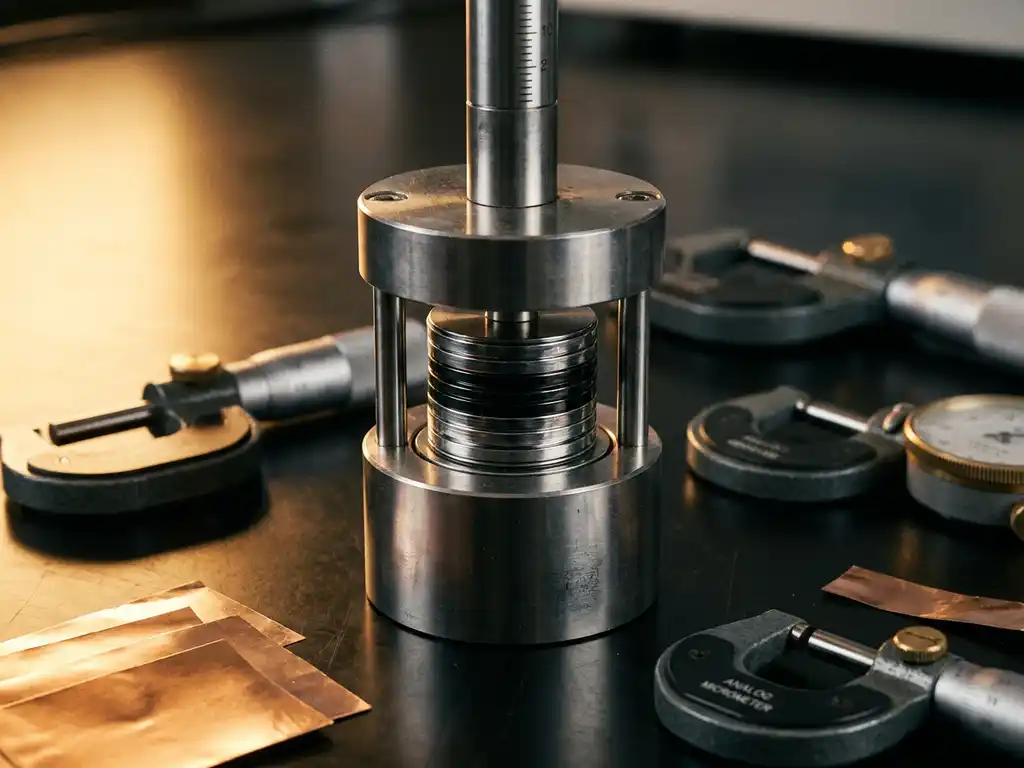

Stack pressure is the compressive force applied perpendicular to the electrode stack in a solid-state cell, expressed per unit area (MPa). Unlike liquid-electrolyte cells, which rely on a fluid to maintain ionic contact between electrodes, SSBs depend on solid-solid interfaces. Those interfaces only conduct ions effectively when the surfaces are in intimate mechanical contact.
The need for stack pressure arises from the physical nature of solid electrolytes. Ceramic and polymer electrolyte materials do not flow or self-heal. Any gap, crack, or delamination at the electrolyte-electrode interface immediately disrupts the ionic conduction pathway. Stack pressure is the primary mechanism for maintaining and recovering that contact during cell operation.
A useful analogy is two pieces of sandpaper pressed together. When held firmly, the surfaces interlock and transfer force efficiently. When released, the contact area drops dramatically. The same principle governs ion transport across a solid electrolyte interface: contact quality is a direct function of applied pressure.
How stack pressure affects ionic contact and cell performance
Pressure governs the real contact area between electrode particles and the solid electrolyte surface. At insufficient pressure, voids form at grain boundaries and electrode-electrolyte interfaces, increasing interfacial resistance and generating measurable overpotential even before any electrochemical cycling begins.
During cycling, the situation becomes more complex. Active materials expand and contract as lithium ions intercalate and de-intercalate. In a solid system, this volume change cannot be accommodated by electrolyte displacement. Instead, it is transmitted mechanically through the stack. If the applied pressure cannot accommodate these dimensional changes, the following effects can occur:
- Loss of interfacial contact during delithiation, raising charge-transfer resistance
- Cracking of brittle ceramic electrolyte layers under compressive stress during lithiation
- Delamination at the cathode-electrolyte interface after repeated cycling
- Lithium dendrite propagation through pre-existing microcracks in oxide electrolytes, accelerated by non-uniform pressure distribution
The electrochemical consequence of these mechanical events is a gradual increase in cell impedance, reduced specific capacity, and declining coulombic efficiency. Crucially, these signatures are indistinguishable from intrinsic material degradation unless pressure is controlled and monitored independently.
Pressure control methods used in SSB test cells
Research-grade force test cells for SSB work employ several distinct approaches to pressure management, each with different implications for data quality and experimental flexibility.
Spring-loaded constant-force designs
Spring-loaded mechanisms apply a nominally constant force to the cell stack. The actual pressure varies slightly as the stack thickness changes during cycling, because a spring follows Hooke’s law. For small volume changes, this variation is acceptable. For high-capacity anodes such as silicon or lithium metal, where thickness excursions can exceed 10%, the pressure deviation over a full cycle may be significant.
Externally applied pneumatic or hydraulic pressure
Pneumatic and hydraulic systems decouple the applied force from stack thickness changes, enabling true isobaric conditions. Pressure can be held constant regardless of dimensional change, or varied programmatically to study pressure-dependent phenomena. This approach is more complex to implement but provides the highest degree of experimental control.
Fixed-geometry cells with defined pre-load
Some test cell designs use rigid housings with a defined bolt torque to set an initial pre-load. This is the simplest approach but offers no active pressure control. The pressure evolves with stack thickness throughout the experiment, and without simultaneous force measurement, the actual pressure at any point in the cycle is unknown. Conventional cells of this type do not include a force sensor — only the initial pressure is read, and mechanical settling can reduce it over time without detection.
For quantitative SSB research, the choice of pressure control method should be treated as a primary experimental variable, not a hardware convenience. Test cells that combine force measurement with electrochemical characterisation, such as the PAT-Cell-Force, allow pressure to be recorded alongside capacity, impedance, and potential data throughout the experiment. The PAT-Cell-Force and PAT-Cell-Solid from EL-CELL include an integrated force sensor, and an optional gas pressure sensor can be added to measure force changes caused by gas evolution separately from mechanical ones.
How uncontrolled pressure corrupts electrochemical measurements
Building on the contact mechanics described above, it becomes clear that uncontrolled pressure introduces a systematic confound into every electrochemical measurement made on a solid-state cell. The problem is not random noise but structured artefact that mimics genuine electrochemical behaviour.
Consider a standard galvanostatic cycling experiment. If stack pressure drops during delithiation because the active material contracts and no compensating force is applied, interfacial resistance rises. This resistance increase appears in the voltage response as an elevated overpotential. An analyst interpreting this data without knowledge of the pressure state might attribute the overpotential to sluggish solid-state diffusion or deteriorating electrolyte conductivity, both of which are plausible material-level explanations. The mechanical origin of the signal would remain invisible.
Electrochemical impedance spectroscopy (EIS) measurements are particularly sensitive to this problem. Interfacial impedance in SSBs is strongly pressure-dependent. A spectrum acquired at one pressure state cannot be directly compared to a spectrum acquired at a different pressure state, even on the same cell. If pressure is not held constant or at least recorded during EIS acquisition, the resulting spectra are of limited quantitative value for equivalent circuit modelling or degradation analysis.
The practical implication is straightforward: any SSB dataset in which stack pressure was neither controlled nor measured should be interpreted with caution, particularly when drawing conclusions about interfacial resistance, ionic conductivity, or capacity fade mechanisms.
Matching pressure conditions to your SSB research question
Different research objectives require different pressure regimes, and selecting the appropriate condition before designing the experiment avoids the need to repeat measurements under corrected conditions.
The following framework maps common SSB research questions to appropriate pressure strategies:
- Intrinsic electrolyte conductivity measurement: Apply a defined, stable pressure representative of the intended application range. Record pressure throughout. EIS should only be compared across samples measured at identical pressure.
- Electrode-electrolyte interfacial characterisation: Use a pressure-controlled cell capable of isobaric operation. Vary pressure systematically across separate experiments to map the pressure-impedance relationship before drawing conclusions about chemistry.
- Cycling stability and capacity retention: Define a target pressure and use a cell design that maintains it within a specified tolerance throughout cycling. Log pressure alongside electrochemical data to identify mechanical events such as electrolyte cracking or electrode delamination.
- Lithium metal anode behaviour: Pressure is a primary variable governing lithium plating morphology and dendrite suppression. Experiments should cover a defined pressure range, with each condition replicated independently rather than cycling through pressure states on a single cell.
- Stack thickness evolution (dilatometry): Combine force measurement with displacement sensing. Instruments such as the ECD-4-nano resolve thickness changes at sub-nanometre resolution, enabling correlation of mechanical and electrochemical events within the same measurement.
A common misconception is that higher pressure always improves cell performance. Above an optimum range, excessive pressure can fracture brittle electrolyte pellets, induce plastic deformation in lithium metal anodes, and create non-uniform current distribution. The target pressure should be justified by the material system and electrolyte geometry, not selected arbitrarily or copied from a different cell format.
How EL-Cell GmbH supports solid-state battery testing with force control
EL-Cell GmbH designs test cells and instrumentation specifically for the pressure-sensitive demands of SSB research. A significant practical challenge with conventional test cells is their high assembly failure rate — studies cite a rate of 43%, meaning even experienced builders typically achieve only 4 out of 5 working cells, while inexperienced assemblers fall below 50%. The PAT-Cell-Force and PAT-Cell-Solid address this directly by standardising and simplifying preparation so that nearly every cell runs without failure.
Conventional cells also compress electrode material inhomogeneously. Both the PAT-Cell-Force and PAT-Cell-Solid use the PAT-Solid-Core insert, which features guided plane-parallel tungsten carbide plungers and a dedicated pressing tool to ensure homogeneous compression. These tungsten carbide plungers withstand high mechanical loads without embedding particles into the plunger surface — a known problem with conventional plungers, which must be ground or polished between measurements and gradually alter cell geometry as a result.
Conventional cells are typically sealed with O-rings and often use PEEK housings. PEEK absorbs significant moisture and requires drying at 120°C under vacuum, adding preparation time and contamination risk. EL-CELL cells instead use aluminum seals and glass-metal feedthroughs in place of O-rings, and PPS plastic instead of PEEK. PPS absorbs less moisture, reducing both contamination risk and preparation time.
Our product range addresses the full spectrum of pressure management requirements described in this article:
- The PAT-Cell-Force integrates a calibrated force sensor directly into the test cell, enabling simultaneous measurement of stack force and electrochemical parameters throughout cycling and EIS experiments.
- The PAT-Cell-Solid is designed for solid electrolyte systems, providing the mechanical rigidity and defined pre-load geometry required for reproducible SSB measurements.
- The PAT-Cell-Press provides externally applied, adjustable pressure for experiments where isobaric conditions or systematic pressure variation are required.
- All cells are compatible with the PAT Series ecosystem, allowing force, impedance, and cycling data to be acquired and analysed within a single integrated workflow.
If you are designing an SSB experimental programme and need guidance on selecting the appropriate pressure control approach for your electrolyte system or research question, contact our technical team directly. We can advise on cell selection, pressure calibration, and measurement protocols based on your specific materials and objectives.
