The following table shows the available components for the PAT-Core.
PAT-Core Components List
Recommended PAT-Core configurations for the most common testing scenarios can be found here.
| Item name | Reference material | Separator material | Temperature range | Component type | Usage | Material | Order number | Cell design | Order | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

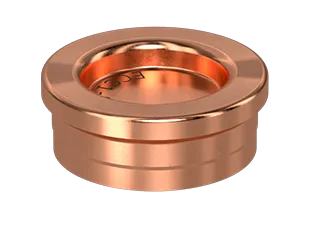

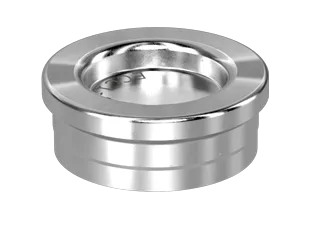

 | Upper plunger (Cu) | 70°C 200°C | Plunger | Single-use | Copper (Cu, 99.9 (E-CU 58)) | ECC1-01-0026-A | PAT-Cell-HT | Buy online | |||
 | Upper plunger (Al) | 70°C 200°C | Plunger | Single-use | Aluminum (Al, 99.5 (EN-AW-1050)) | ECC1-01-0026-B | PAT-Cell-HT | Buy online | |||
 | Upper plunger (Stainless steel) | 70°C 200°C | Plunger | Reusable | Stainless steel 316L (1.4404) | ECC1-01-0026-C | PAT-Cell-HT | Buy online | |||
| Upper plunger (Nickel) | 70°C 200°C | Plunger | Reusable | Nickel (Ni>99%) | ECC1-01-0026-M | PAT-Cell-HT | Buy online | |||
 | Upper plunger (PEEK) with upper feed wire (Au), disc spring (Au) and current collector disc (Au) | 70°C 200°C | Plunger | Reusable | PEEK (Plunger) Gold (Au) (Feed wire, disc spring and current collector disc) | ECC1-01-0065-A | PAT-Cell-Aqu, PAT-Cell-HT | Buy online | |||
| Upper plunger (PEEK) with upper feed wire (Pt), disc spring (Au) and current collector disc (Pt) | 70°C 200°C | Plunger | Reusable | PEEK (Plunger) Platinum (Pt) (Feed wire and current collector disc) Gold (Au) (Disc spring) | ECC1-01-0065-B | PAT-Cell-Aqu, PAT-Cell-HT | Request a quote | |||
 | Lower plunger (Cu) | 70°C 200°C | Plunger | Single-use | Copper (Cu, 99.9 (E-CU 58)) | ECC1-01-0027-B_x (x = height number 50 to 800) | PAT-Cell-HT | Buy online | |||
 | Lower plunger (Al) | 70°C 200°C | Plunger | Single-use | Aluminum (Al, 99.5 (EN-AW-1050)) | ECC1-01-0027-A_x (x = height number 50 to 800) | PAT-Cell-HT | Buy online | |||
 | Lower plunger (Nickel) | 70°C 200°C | Plunger | Reusable | Nickel (Ni>99%) | ECC1-01-0027-M_x (x = height number 50 to 800) | PAT-Cell-HT | Buy online | |||
| Lower plunger (Stainless steel) | 70°C 200°C | Plunger | Reusable | Stainless steel 316L (1.4404) | ECC1-01-0027-C_x (x = height number 50 to 800) | PAT-Cell-HT | Buy online | |||
 | Lower Plunger (perf. Plate), stainless steel | 70°C 200°C | Plunger | Reusable | Stainless steel 316L (1.4404) | ECC1-01-0081-C_x (x = height number 50 to 800) | PAT-Cell-Gas | Request a quote | |||
 | Lower plunger (perf. plate), Ni | 70°C 200°C | Plunger | Reusable | Nickel, Ni >99% | ECC1-01-0081-D_x (x = height number 50 to 800) | PAT-Cell-Gas | Request a quote | |||
 | Lower plunger (flow field), Ni | 70°C 200°C | Plunger | Reusable | Nickel, Ni >99% | ECC1-01-0038-D_x (x = height number 50 to 800) | PAT-Cell-Gas | Request a quote | |||
| Lower plunger (flow field), Stainless steel | 70°C 200°C | Plunger | Reusable | Stainless steel 316L (1.4404) | ECC1-01-0038-C_x (x = height number 50 to 800) | PAT-Cell-Gas | Buy online | |||
 | Lower plunger (PEEK) with lower feed wire (Pt), disk spring (Au) and current collector disc (Pt) | 70°C 200°C | Plunger | Reusable | PEEK (Plunger) Platinum (Pt) (Feed wire and current collector disc) Gold (Au) (Disc spring) | ECC1-01-0055-B_x | PAT-Cell-HT, PAT-Cell-Aqu | Request a quote | |||
| Lower plunger (PEEK) with lower feed wire (Au), disk spring (Au) and current collector disc (Au) | 70°C 200°C | Plunger | Reusable | PEEK (Plunger) Gold (Au) (Feed wire, disc spring and current collector disc) | ECC1-01-0055-A_x | PAT-Cell-HT, PAT-Cell-Aqu | Request a quote | |||
 | Insulation sleeve PP (Al-Reference, Separator Customized) (10 pcs) | Aluminum | Provided by customer | 70°C | Insulation sleeve | Single-use | Aluminum (Al) (Reference) Custom separator Polypropylene (PP) (Sleeve) | Request a quote | |||
| Insulation sleeve PP (Na-Reference, Separator GF/A) (10 pcs) | Sodium | Borosilicate glass fiber | 70°C | Insulation sleeve | Single-use | Sodium (Na) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-U/X | Separator type: Whatman GF/A | Buy online | |
| Insulation sleeve PP (Mg-Reference, Separator GF/A) (10 pcs) | Magnesium | Borosilicate glass fiber | 70°C | Insulation sleeve | Single-use | Magnesium (Mg) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-H/X | Separator type: Whatman GF/A | Buy online | |
| Insulation sleeve PP (Al-Reference, Separator GF/A) (10 pcs) | Aluminum | Borosilicate glass fiber | 70°C | Insulation sleeve | Single-use | Aluminum (Al) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-J/X | Separator type: Whatman GF/A | Buy online | |
| Insulation sleeve PP (Mg-Reference, Separator Customized) (10 pcs) | Magnesium | Provided by customer | 70°C | Insulation sleeve | Single-use | Magnesium (Mg) (Reference) Custom separator Polypropylene (PP) (Sleeve) | Request a quote | |||
| Insulation sleeve PP (AC-Reference, Separator Customized) (10 pcs) | Activated carbon | Provided by customer | 70°C | Insulation sleeve | Single-use | Activated carbon (Reference) Custom separator Polypropylene (PP) (Sleeve) | Request a quote | |||
| Insulation sleeve PP (Na-Reference, Separator Customized) (10 pcs) | Sodium | Provided by customer | 70°C | Insulation sleeve | Single-use | Sodium (Na) (Reference) Custom separator Polypropylene (PP) (Sleeve) | Request a quote | |||
| Insulation sleeve PP (AC(SS)-Reference ring, Separator GF/A) (10 pcs) | Activated carbon on stainless steel | Borosilicate glass fiber | 70°C | Insulation sleeve | Single-use | Activated carbon on stainless steel (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0450-M/X | Separator type: Whatman GF/A, 260 µm | Buy online | |
 | Insulation sleeve PP (Sodium Reference ring, Separator 2325) (10 pcs) | Sodium | Celgard 2325 | 70°C | Insulation sleeve | Single-use | Sodium(Reference) Celgard 2325 (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0450-O/X | Separator type: Celgard 2325, 25 µm | Buy online | |
| Insulation sleeve PP (AC(SS) Reference ring, Separator FS-5P) (10 pcs) | Activated carbon on stainless steel | PP fiber/PE membrane | 70°C | Insulation sleeve | Single-use | Activated carbon on stainless steel (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0450-N/X | Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B, 220 µm) | Buy online | |
| Insulation sleeve PP (Na-Reference, Separator FS-5P) (10 pcs) | Sodium | PP fiber/PE membrane | 70°C | Insulation sleeve | Single-use | Sodium (Na) (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-X/X | Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B) | Buy online | |
| Insulation sleeve PP (Li-Reference, Separator Customized) (10 pcs) | Lithium | Provided by customer | 70°C | Insulation sleeve | Single-use | Lithium (Li) (Reference) Custom separator Polypropylene (PP) (Sleeve) | Request a quote | |||
| Insulation sleeve PP (Li-Reference, Separator GF/A) (10 pcs) | Lithium | Borosilicate glass fiber | 70°C | Insulation sleeve | Single-use | Lithium (Li) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-O/X | Separator type: Whatman GF/A | Buy online | |
| Insulation sleeve PP (Li-Reference, Separator FS 3005-25) (10 pcs) | Lithium | PET fiber, Al2O3 | 70°C | Insulation sleeve | Single-use | Lithium (Li) (Reference) PET fiber, Al2O3 (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-A/X | Separator type: Freudenberg Viledon FS 3005-25 | Buy online | |
| Insulation sleeve PP (Li-Reference, Separator FS-5P) (10 pcs) | Lithium | PP fiber/PE membrane | 70°C | Insulation sleeve | Single-use | Lithium (Li) (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-V/X | Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B) | Buy online | |
 | Insulation sleeve (PP), stainless steel mesh, no Separator (10 pcs) | Stainless steel mesh | 70°C | Insulation sleeve | Single-use | Stainless steel mesh (Reference) without Separator Polypropylene (PP) (Sleeve) | ECC1-00-0210-N/X | Buy online | |||
 | Insulation sleeve (PP), stainless steel cross, no Separator (10 pcs) | Stainless Steel Cross Reference | 70°C | Insulation sleeve | Single-use | Stainless steel cross (Reference) without Separator Polypropylene (PP) (Sleeve) | ECC1-00-0420-M/X | Buy online | |||
 | Insulation sleeve PP (Separator Customized, if appl. Clamping ring) (10 pcs) | none | Provided by customer | 70°C | Insulation sleeve | Single-use | Custom reference and separator Polypropylene (PP) (Sleeve) | Request a quote | |||
| Insulation sleeve PP (Separator GF/A) (10 pcs) | none | Borosilicate glass fiber | 70°C | Insulation sleeve | Single-use | Custom reference Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-P/X | Separator type: Whatman GF/A | Buy online | |
| Insulation sleeve PP (Separator FS 3005-25) (10 pcs) | none | PET fiber, Al2O3 | 70°C | Insulation sleeve | Single-use | Custom reference PET fiber, Al2O3 (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-B/X | Separator type: Freudenberg Viledon FS 3005-25 | Buy online | |
| Insulation sleeve PP (Separator FS-5P) (10 pcs) | none | PP fiber/PE membrane | 70°C | Insulation sleeve | Single-use | Custom reference PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve) | ECC1-00-0210-W/X | Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B) | Buy online | |
 | Plain Insulation sleeve PP (disassembled) (10 pcs) | none | none | 70°C | Insulation sleeve | Single-use | Custom reference and separator Polypropylene (PP) (Sleeve) | ECC1-00-0210-D/X | Buy online | ||
 | Plain Insulation sleeve (PP), Reed contact (Ni on SS), disassembled (10 pcs) | none | none | 70°C | Insulation sleeve | Single-use | Custom reference Custom separator Polypropylene (PP) (Sleeve) | ECC1-00-0210-T/X | Buy online | ||
 | Plain Insulation sleeve PEEK, disassembled | none | none | 70°C 200°C | Insulation sleeve | Reusable | PEEK (Sleeve) Custom reference and separator | ECC1-00-0510-T | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |
 | Separator (GF/A) 21.6 x 0.26 mm, 50 pcs | Borosilicate glass fiber | 70°C 200°C | Separator | Single-use | Borosilicate glass fiber | ECC1-01-0011-A/L | PAT-Cell-HT, PAT-Cell-Aqu | Separator type: Whatman GF/A | Buy online | |
| Separator (FS-5P) 21.6 x 0.22 mm, 50 pcs | PP fiber/PE membrane | 70°C | Separator | Single-use | PP fiber/PE membrane | ECC1-01-0051-A/L | PAT-Cell-Aqu | Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B) | Buy online | |
 | Separator (FS 3005-25), 21.6 x 0.025 mm, 50 pcs | PET fiber, Al2O3 | 70°C | Separator | Single-use | PET fiber, Al2O3 | ECC1-01-0036-A/L | PAT-Cell-Aqu | Separator type: Freudenberg Viledon FS 3005-25 | Buy online | |
 | Reed contact (Ni on SS) (10 pcs) | 70°C 200°C | Reed contact | Single-use | Nickel (Ni>99%) on stainless steel 316L (1.4404) | ECC1-00-0186-A/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Reed contact (Au on SS) (10 pcs) | 70°C 200°C | Reed contact | Single-use | Gold (Au>99%) on stainless steel 316L (1.4404) | ECC1-00-0186-D/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Reference ring (Mg) (10 pcs) | Magnesium | 70°C 200°C | Reference ring | Single-use | Magnesium (Mg) | ECC1-00-0182-F/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | ||
 | Ref mesh IV (PAT) | Stainless steel | 70°C 200°C | Reference ring | Reusable | Stainless Steel 1.4404 / 316L | ECC1-00-0321-F | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | ||
 | Ref mesh III (PAT) | Stainless steel | 70°C 200°C | Reference ring | Reusable | Stainless Steel 1.4404 / 316L | ECC1-00-0321-E | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | ||
 | Reference ring (Li) (10 pcs) | Lithium | 70°C 200°C | Reference ring | Single-use | Lithium (Li) | ECC1-00-0182-O/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | ||
| Reference ring (Na) (10 pcs) | Sodium | 70°C 200°C | Reference ring | Single-use | Sodium coated (Na) | ECC1-00-0182-L/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | ||
 | Reference ring II (AC on SS) (10 pcs) | Activated carbon | 70°C 200°C | Reference ring | Single-use | Activated carbon on stainless steel | ECC1-00-0182-W/X | PAT-Cell-HT | AC 95%, aqueous binder: CMC 3%, SBR 2% | Buy online | |
 | Current collector 18 mm, Au (5 pcs) | 70°C 200°C | Current collector disc | Reusable | Gold (Au>99%) | ECC1-00-0069-A/V | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Current collector 18 mm, Ti (5 pcs) | 70°C 200°C | Current collector disc | Reusable | Titanium (Ti >99%, grade 2) | ECC1-00-0069-C/V | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Current collector 18 mm, Pt (5 pcs) | 70°C 200°C | Current collector disc | Reusable | Platinum (Pt>99%) | ECC1-00-0069-D/V | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Current collector 18 mm, Ni (5 pcs) | 70°C 200°C | Current collector disc | Reusable | Nickel (Ni>99%) | ECC1-00-0069-F/V | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Slotted current collector 18.0 mm x 0.05 mm, SS (10 pcs) | 70°C 200°C | Current collector disc | Reusable | Stainless Steel 1.4404 / 316L | ECC1-00-0418-A/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
| Slotted current collector 21.4 mm x 0.05 mm, SS (10 pcs) | 70°C 200°C | Current collector disc | Reusable | Stainless Steel 1.4404 / 316L | ECC1-00-0418-B/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online | |||
 | Sealing ring PE (100 pcs) | 70°C | Sealing ring | Single-use | Polyethylene (PE) | ECC1-00-0232-A/C | PAT-Cell_only | Buy online | |||
 | Sealing ring, Al (washer)(annealed), 10 pcs | 70°C 200°C | Sealing ring | Single-use | Aluminum (Al) 3.3315 | ECC1-00-0232-G/X | PAT-Cell-HT, PAT-Cell-Aqu, PAT-Cell-Press | Buy online | |||
 | Sealing ring PTFE (10 pcs) | 70°C 200°C | Sealing ring | Single-use | PTFE | ECC1-00-0232-B/X | PAT-Cell-HT, PAT-Cell-Aqu | Buy online |
*x = Height number (50 to 800). Use our configurator to determine the proper lower plunger.
