Static force application maintains a fixed mechanical load on a battery test cell throughout the experiment, while dynamic force application adjusts the applied load in response to changes in the electrode stack – such as thickness variations caused by lithiation and delithiation. The distinction matters because the mechanical boundary condition directly influences electrochemical behaviour, particularly in thick electrodes, composite cathodes, and solid-state configurations. The sections below address each method in detail and outline when one approach is more appropriate than the other.
How does force application affect battery test cell measurements?
The mechanical load applied to a battery test cell influences ionic transport, interfacial contact resistance, and the structural integrity of electrode materials. When electrodes expand or contract during cycling, the contact pressure between the electrode, separator, and current collector changes – and this change affects measured capacity, impedance, and cycle life. Controlling or monitoring that pressure is therefore a meaningful experimental variable, not simply a practical concern.
In conventional flooded liquid-electrolyte cells, moderate stack pressure is sufficient to maintain contact and is often held constant. In solid-state battery testing, however, the electrolyte itself is a rigid ceramic or polymer layer that requires precise and sustained mechanical pressure to ensure adequate interfacial contact across the entire electrode surface. In these configurations, the applied force is not incidental – it is a primary experimental parameter that must be defined and reported alongside electrochemical data.
Researchers working with silicon-based anodes, sulphide electrolytes, or oxide solid electrolytes are particularly sensitive to this issue. Silicon anodes can expand by more than 300% volumetrically during lithiation, and maintaining consistent contact pressure throughout that expansion requires a deliberate mechanical strategy.
What is static force application in battery test cells?

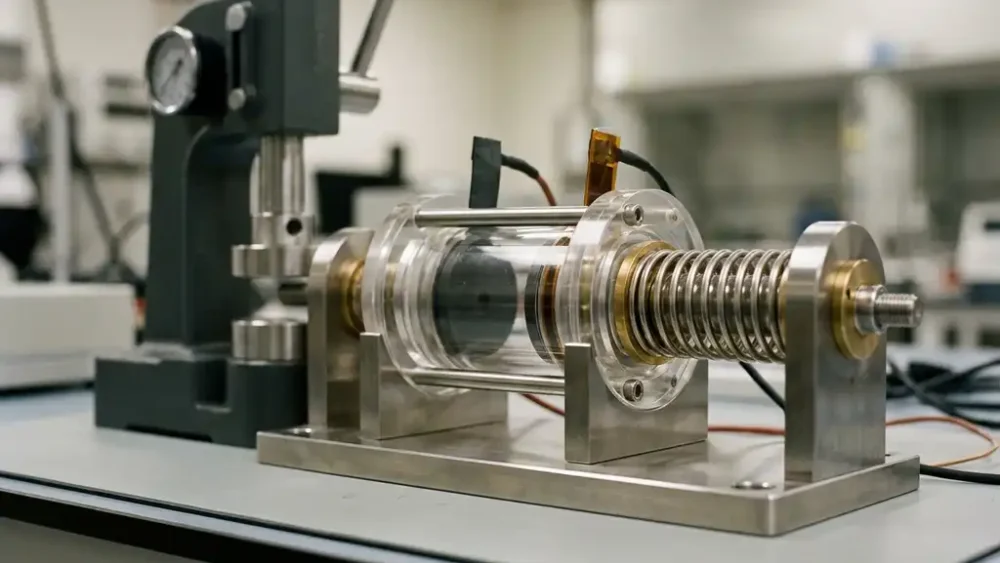

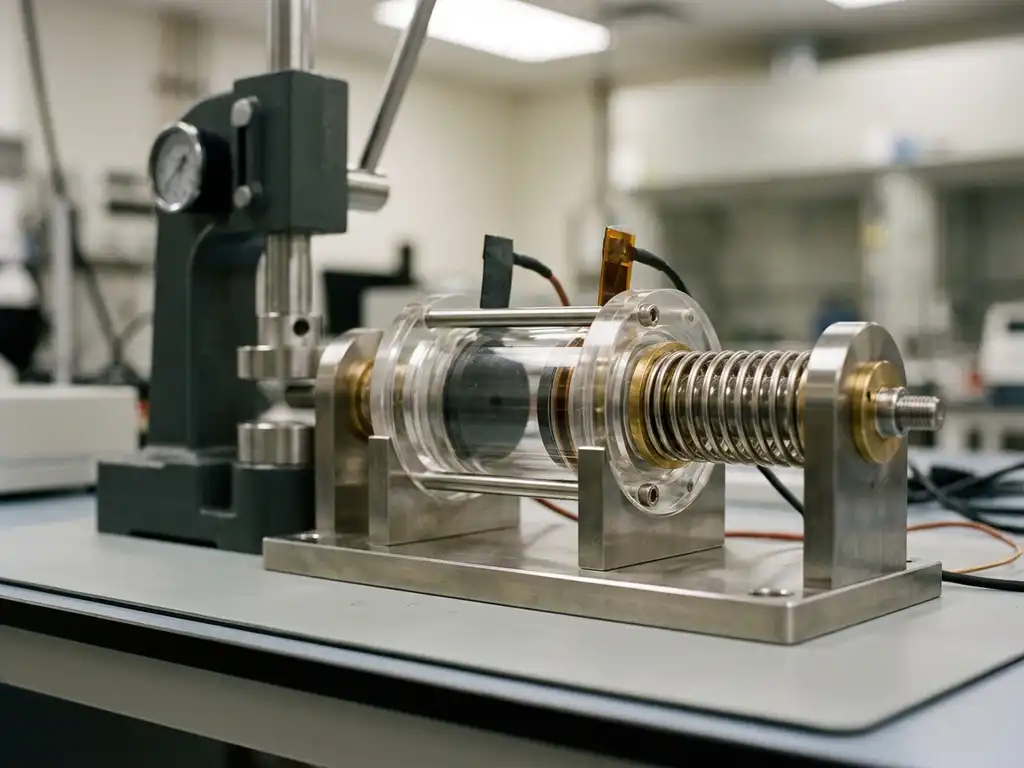

Static force application means a fixed, pre-set mechanical load is applied to the cell stack at assembly and held constant throughout the experiment. The force does not respond to changes in electrode thickness or stack pressure during cycling. This is the most common approach in standard laboratory test cells and is achieved using springs, torque-controlled bolts, or fixed spacers.
Static loading is straightforward to implement and reproducible when assembly protocols are followed consistently. It is well suited to:
- Liquid-electrolyte half-cells and full cells where electrode swelling is modest
- Screening experiments where mechanical boundary conditions are secondary to electrochemical performance
- High-throughput testing where simplicity and speed of assembly are priorities
- Baseline comparisons where a defined, fixed pressure is required for reproducibility
The limitation of static force is that as the electrode stack expands or contracts, the actual contact pressure deviates from the initial set point. A spring-loaded design mitigates this to some degree by allowing small displacements while maintaining approximate force, but it cannot compensate for large volumetric changes without a corresponding shift in the applied load. Conventional cells also do not include a force sensor — only initial pressure is read, and mechanical settling can reduce it over time without detection.
What is dynamic force application in battery test cells?
Dynamic force application adjusts the mechanical load on the cell stack in real time, or according to a defined force profile, as the electrode dimensions change during cycling. Rather than holding a fixed spring compression or bolt torque, a dynamic system uses a controlled actuator – typically a motorised piston or pneumatic mechanism – combined with a force sensor to maintain a target pressure regardless of electrode thickness changes.
This approach allows researchers to:
- Hold constant contact pressure across the full charge and discharge cycle
- Apply a programmed force profile – for example, ramping pressure during formation or reducing it during rest periods
- Decouple mechanical and electrochemical variables by independently controlling stack pressure
- Measure the force evolution as a function of state of charge, providing mechanical data alongside electrochemical data
Dynamic force control is particularly relevant for solid-state battery testing, where the electrolyte layer requires continuous and well-defined pressure to maintain ionic contact. It is also valuable when studying electrode materials that undergo significant volume changes, because a static load would either over-constrain the electrode at full lithiation or lose contact at full delithiation.
How do static and dynamic force compare for electrode swelling studies?
For electrode swelling studies, dynamic force application provides more mechanistically informative data than static force. Static loading records thickness change under a fixed mechanical constraint, whereas dynamic loading allows the researcher to separate the contributions of electrochemical expansion from mechanical compliance – or to hold pressure constant and observe how the electrochemistry responds.
When using static force in a dilatometry experiment, the measured displacement reflects both the intrinsic electrode expansion and the elastic response of the cell hardware. When using dynamic force, the system can be configured to apply zero additional load beyond the sensor weight, giving a true free-swelling measurement, or to apply a defined pressure that mimics real pouch cell or prismatic cell stack conditions.
For materials characterisation work – particularly when reporting expansion coefficients for new electrode materials – dynamic or zero-load conditions are preferable because they avoid convoluting material behaviour with hardware compliance. For applied studies that aim to replicate industrial cell conditions, a defined static or dynamic pressure that matches the target application is more representative.
When should researchers choose dynamic over static force?
Dynamic force control is the appropriate choice when the mechanical boundary condition is itself a research variable, or when electrode volume changes are large enough to cause meaningful deviations from the initial static load. Specific scenarios that warrant dynamic force include:
- Solid-state electrolyte cells: Sulphide and oxide electrolytes require sustained and precisely defined stack pressure to maintain ionic contact. A static bolt torque will not compensate for creep or dimensional changes in the electrolyte layer over extended cycling.
- Silicon and silicon-composite anodes: Large volumetric expansion during lithiation means a static spring load will be significantly over- or under-compressed depending on the state of charge.
- Formation protocol studies: Researchers investigating the effect of mechanical constraint on solid electrolyte interphase (SEI) formation benefit from applying defined pressure profiles during the first few cycles.
- Operando mechanical characterisation: When force evolution over cycling is a reported output rather than a controlled input, dynamic measurement with a calibrated load cell is necessary.
- Long-term cycling studies: Over hundreds of cycles, electrode and electrolyte creep can cause a static load to drift substantially. A dynamic system corrects for this continuously.
Static force remains appropriate for most liquid-electrolyte screening work, where the added complexity of dynamic control is not justified by the experimental objectives.
What equipment supports dynamic force control in lab test cells?
Dynamic force control in laboratory-scale test cells requires a combination of a precision load cell, a controlled actuator, and software capable of closed-loop force regulation. The hardware must be compatible with the electrochemical measurement chain so that force data and electrochemical data are recorded synchronously.
Several cell formats support this capability. The PAT-Cell-Force is a coin-cell-format test cell designed specifically for force-controlled cycling experiments. It incorporates an integrated force sensor that records stack pressure continuously during electrochemical measurements, making it suitable for electrode swelling studies and solid-state cell research where mechanical data must accompany electrochemical data. An optional gas pressure sensor can also be added to measure force changes caused by gas evolution separately from mechanical ones. The PAT-Cell-Solid extends this to higher-pressure applications, supporting the stack pressures required for oxide-based solid electrolytes.
Both the PAT-Cell-Force and PAT-Cell-Solid use the PAT-Solid-Core insert, which features guided plane-parallel tungsten carbide plungers and a dedicated pressing tool to ensure homogeneous compression of electrode material — addressing the inhomogeneous compression that is common in conventional test cells. These tungsten carbide plungers also withstand high mechanical loads without embedding particles or degrading over time, eliminating the need for grinding or polishing between measurements that conventional plungers require.
For dilatometry – where the primary output is dimensional change rather than applied force – the ECD-4-nano provides sub-5 nm displacement resolution under controlled load conditions, allowing researchers to quantify electrode expansion and contraction with high precision across a defined pressure range.
Reducing assembly failure and contamination risk
Conventional test cells have a notably high assembly failure rate — studies cite figures as high as 43%. Even experienced builders typically achieve only 4 out of 5 working cells, while inexperienced assemblers fall below 50%. The PAT-Cell-Force and PAT-Cell-Solid from EL-CELL standardize and simplify the preparation process so that nearly every cell runs without failure, regardless of operator experience.
Contamination risk during preparation is another practical concern. Conventional cells are typically sealed with O-rings and often use PEEK housings, which absorb significant moisture and require drying at 120°C under vacuum. EL-CELL cells use aluminum seals and glass-metal feedthroughs instead of O-rings, and PPS plastic instead of PEEK. PPS absorbs less moisture than PEEK, reducing contamination risk and cutting preparation time.
How EL-Cell GmbH supports force-controlled battery testing
We design and manufacture test cells and instruments specifically for researchers who need to control or characterise mechanical boundary conditions during electrochemical experiments. Our product range addresses both static and dynamic force requirements within a single, interoperable ecosystem:
- The PAT-Cell-Force provides integrated force sensing in a coin-cell-compatible format, recording stack pressure synchronously with electrochemical data
- The PAT-Cell-Solid supports elevated stack pressures required for solid-state electrolyte testing, including oxide and sulphide ceramic systems
- The ECD-4-nano delivers sub-5 nm displacement resolution for quantitative electrode swelling characterisation under defined mechanical loads
- The PAT-Tester-i-16 integrates galvanostatic and potentiostatic cycling with electrochemical impedance spectroscopy (EIS) capabilities, enabling complete electrochemical and mechanical datasets from a single instrument platform
- All instruments are supported by EL-Software, which allows force, displacement, and electrochemical channels to be logged and exported together
We also operate our own electrochemical laboratory and can perform test measurements for research groups that require data before committing to instrument procurement. If you are working on solid-state cell development or electrode swelling characterisation and want to discuss which force application approach fits your experimental design, contact us directly to speak with one of our application specialists.
