Electrode potential is one of the most fundamental quantities in electrochemistry. Understanding what it is, how it is measured, and what influences its accuracy is essential for anyone conducting laboratory-scale battery materials research.
This article addresses the core questions researchers encounter when working with electrode potential—from the basic definition to the practical measurement challenges that affect data quality in half-cell and full-cell experiments.
What is electrode potential and why does it matter in battery research?
Electrode potential is the electrical potential difference that develops at the interface between an electrode and its surrounding electrolyte, arising from the tendency of electroactive species to gain or lose electrons. In battery research, electrode potential determines the thermodynamic driving force for electrochemical reactions and defines the voltage window within which a material can operate reversibly.
Every electrode material has a characteristic potential profile that reflects its electrochemical behaviour during lithiation or delithiation. Monitoring this potential as a function of state of charge allows researchers to identify phase transitions, detect side reactions, and assess the reversibility of the electrode process. Without accurate potential measurements, it is impossible to determine specific capacity correctly, calculate overpotential, or compare results across laboratories.
In practical terms, electrode potential data underpin almost every metric used to evaluate battery materials—from voltage plateaus and differential capacity analysis to coulombic efficiency and cycle life. Errors in potential measurement propagate directly into all derived quantities, which is why the measurement setup deserves careful attention from the outset.
What is the difference between absolute and relative electrode potential?
Absolute electrode potential refers to the true potential difference between an electrode and the vacuum level, which cannot be measured directly in an electrochemical experiment. Relative electrode potential is the measurable quantity—the potential of a working electrode expressed with respect to a defined reference electrode. All practical electrochemical measurements use relative potentials.
The concept of standard electrode potential arises from this relative framework. By convention, all standard electrode potentials are reported against the Standard Hydrogen Electrode (SHE), which is assigned a potential of exactly 0 V under standard conditions. This provides a universal reference scale that allows results from different laboratories and different reference electrodes to be compared.
Why does the choice of reference scale matter?
Different research groups use different reference electrodes, and the same material can appear to have a different potential depending on which reference is used. Converting between scales requires knowing the potential of each reference electrode versus SHE. Failure to apply these conversions when comparing literature data is a common source of apparent discrepancies in reported electrode potentials.
How is electrode potential measured in practice?

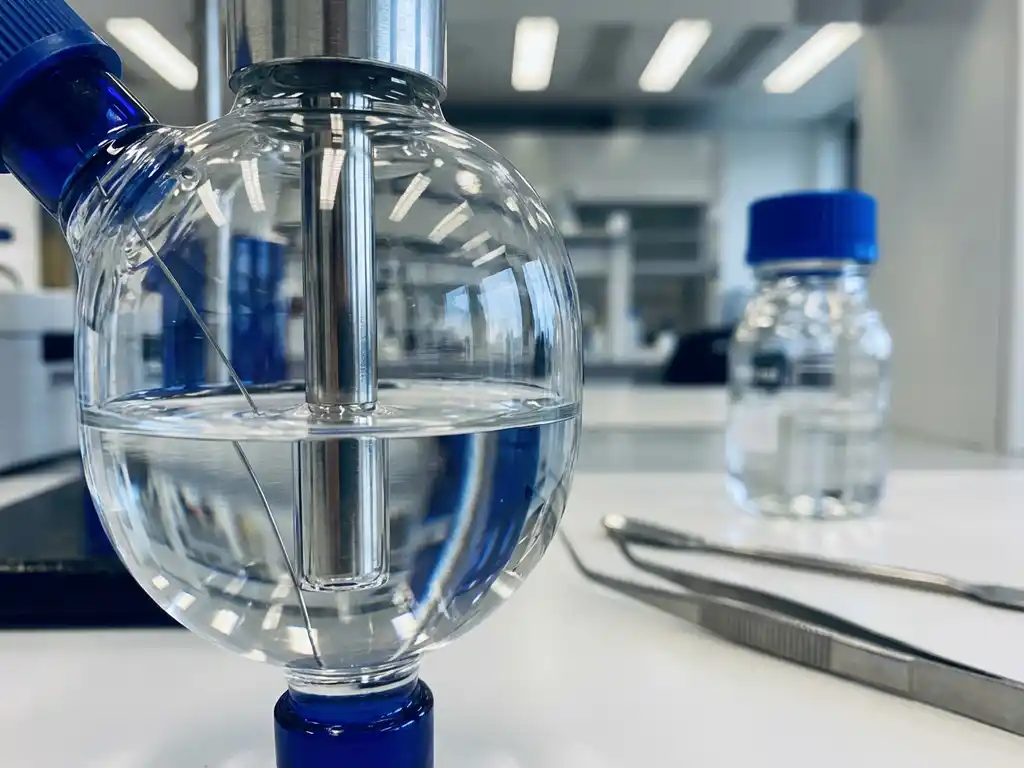

Electrode potential is measured using a potentiostat or galvanostat connected in a circuit that includes a working electrode, a reference electrode, and typically a counter electrode. The instrument measures the potential difference between the working electrode and the reference electrode under controlled current or potential conditions, without drawing significant current through the reference electrode branch.
In a standard three-electrode configuration, the reference electrode is positioned as close as possible to the working electrode to minimise the uncompensated resistance (iR drop) that would otherwise distort the measured potential. The counter electrode carries the current, leaving the reference electrode free to measure potential accurately.
Half-cell versus full-cell measurements
In a half-cell experiment, a single electrode material is tested against a reference electrode, which allows its individual potential profile to be characterised in isolation. In a full-cell measurement, only the total cell voltage is accessible—the individual electrode potentials are not directly observable unless a reference electrode is incorporated into the cell design. Half-cell testing is therefore the standard approach for initial material characterisation, and it is the configuration for which most laboratory electrochemical test cells are designed.
What are the most common reference electrodes used in battery research?
The most common reference electrodes used in battery research are lithium metal (Li/Li⁺), the Standard Hydrogen Electrode (SHE), the Saturated Calomel Electrode (SCE), and the Ag/AgCl electrode. The choice depends on the electrolyte system, the potential range of interest, and the required stability over the course of the experiment.
- Li/Li⁺: The standard reference for lithium-ion battery research in non-aqueous electrolytes. Potentials are reported in V vs. Li/Li⁺. This reference is used in virtually all half-cell testing of anode and cathode materials for Li-ion systems.
- Standard Hydrogen Electrode (SHE): The universal thermodynamic reference, used primarily for aqueous systems and for converting between reference scales.
- Saturated Calomel Electrode (SCE): A stable and reproducible reference for aqueous electrochemistry, commonly used in corrosion studies and aqueous battery research.
- Ag/AgCl: Widely used in aqueous systems; robust and easy to prepare, though its potential is sensitive to chloride concentration.
For non-aqueous lithium-ion research, lithium metal is the reference of choice because it is directly relevant to the chemistry under investigation and avoids the complications of introducing an aqueous reference into an organic electrolyte environment. The stability of the lithium reference over extended cycling is a practical concern that researchers should monitor, particularly in long-duration experiments.
How does electrode potential relate to state of charge and battery performance?
Electrode potential is directly linked to the state of charge (SoC) of an electrode material. As lithium ions are inserted or extracted during cycling, the chemical environment of the host material changes, and this is reflected in a shift in electrode potential. The potential versus capacity curve—often called the charge/discharge profile—is therefore a direct map of the electrochemical transformations occurring within the electrode.
Flat voltage plateaus in the potential profile indicate two-phase reactions, where two distinct phases coexist at a fixed potential. Sloping regions indicate solid-solution behaviour, where the potential changes continuously with lithium content. The shape of this profile is characteristic of the material and provides mechanistic information beyond simple capacity values.
Overpotential and its significance
Overpotential is the difference between the thermodynamic electrode potential and the actual potential measured under current flow. It arises from kinetic limitations, ohmic resistance, and mass transport constraints. Large overpotentials reduce the practical energy that can be extracted from a cell and indicate inefficiencies in the electrode or electrolyte. Measuring overpotential accurately requires a well-defined three-electrode setup and careful control of experimental conditions.
What experimental factors affect the accuracy of electrode potential measurements?
Several experimental factors can introduce error into electrode potential measurements, including reference electrode instability, uncompensated resistance, electrolyte contamination, temperature variation, and poor cell geometry. Each of these factors can shift the measured potential away from the true thermodynamic value, leading to results that are difficult to reproduce or compare with the literature.
- Reference electrode stability: A drifting or contaminated reference electrode is one of the most common sources of error. Reference electrodes should be checked regularly and replaced if their potential is not stable.
- Uncompensated resistance (iR drop): Resistance in the electrolyte between the reference and working electrodes causes a potential offset proportional to the current. This can be corrected electronically using iR compensation functions available on modern potentiostats, or minimised by careful cell design.
- Temperature: Electrode potential is temperature-dependent. Experiments conducted at uncontrolled or variable temperatures will produce data that is difficult to reproduce. Temperature control at the cell level is therefore important for high-quality measurements.
- Electrolyte purity: Trace water or oxygen in non-aqueous electrolytes can alter the electrode surface and shift the measured potential, particularly for lithium metal electrodes and during the formation of the Solid Electrolyte Interphase (SEI) layer.
- Cell geometry: The relative positions of the working, reference, and counter electrodes affect current distribution and the magnitude of the iR drop. Standardised cell designs reduce this source of variability.
Reproducibility across experiments and between laboratories depends on controlling all of these factors systematically. Standardised test cell hardware plays an important role in achieving this.
How EL-Cell GmbH supports accurate electrode potential measurements
Accurate electrode potential measurement requires both well-designed hardware and a controlled experimental environment. EL-Cell GmbH designs and manufactures electrochemical test equipment specifically for battery materials research, with a focus on the reproducibility and standardisation that publishable results demand.
Our product portfolio addresses the key experimental factors that affect potential measurement quality:
- The PAT-Cell and PAT-Cell-Force are designed for efficient three-electrode testing, allowing individual electrode potentials to be monitored independently throughout cycling—essential for distinguishing anode and cathode behaviour in half-cell and full-cell configurations.
- The PAT-Tester-i-16 integrates a fully featured potentiostat/galvanostat with electrochemical impedance spectroscopy (EIS) capabilities and a temperature-controlled cell chamber, directly addressing the temperature stability and iR compensation requirements discussed above.
- Our standardised cell formats reduce variability in cell geometry, minimising differences in uncompensated resistance between experiments and between users—particularly valuable in groups with high staff turnover.
If you would like to discuss how our test cells and instruments can be configured for your specific electrode potential measurement requirements, please contact us directly. Our team is available to advise on cell selection, reference electrode compatibility, and experimental setup.
