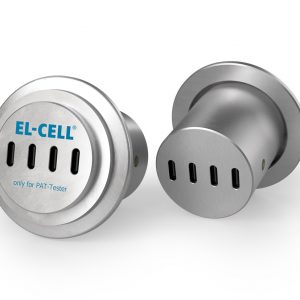

USB-Feedthrough-4
USB cable feedthrough for the glovebox

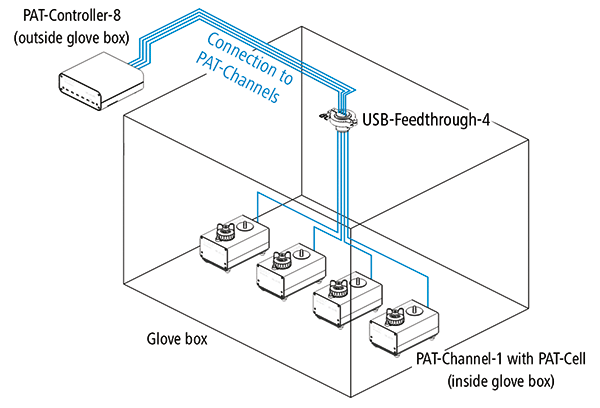

The USB-Feedthrough-4 is a KF-40 flange that can be mounted to any standard glovebox. It provides a gas-tight USB 2.0 Type C feedthrough with four ports for connecting PAT-Channel-1 or PAT-Terminal-1 devices to be operated inside the glovebox.
USB-Feedthrough-4 Overview
Specifications
| USB-Feedthrough-4 | |
| Height | 48 mm |
| Outer diameter | 55 mm |
| Nominal size | KF 40 |
| Ports | 4 |
| Port type | USB 2 Type C |
Delivery Scope
| Component | Order no. |
| USB-Feedthrough-4 | |

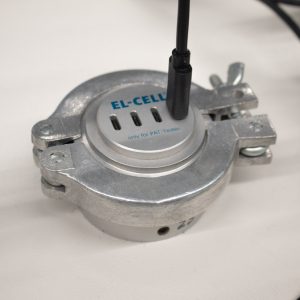

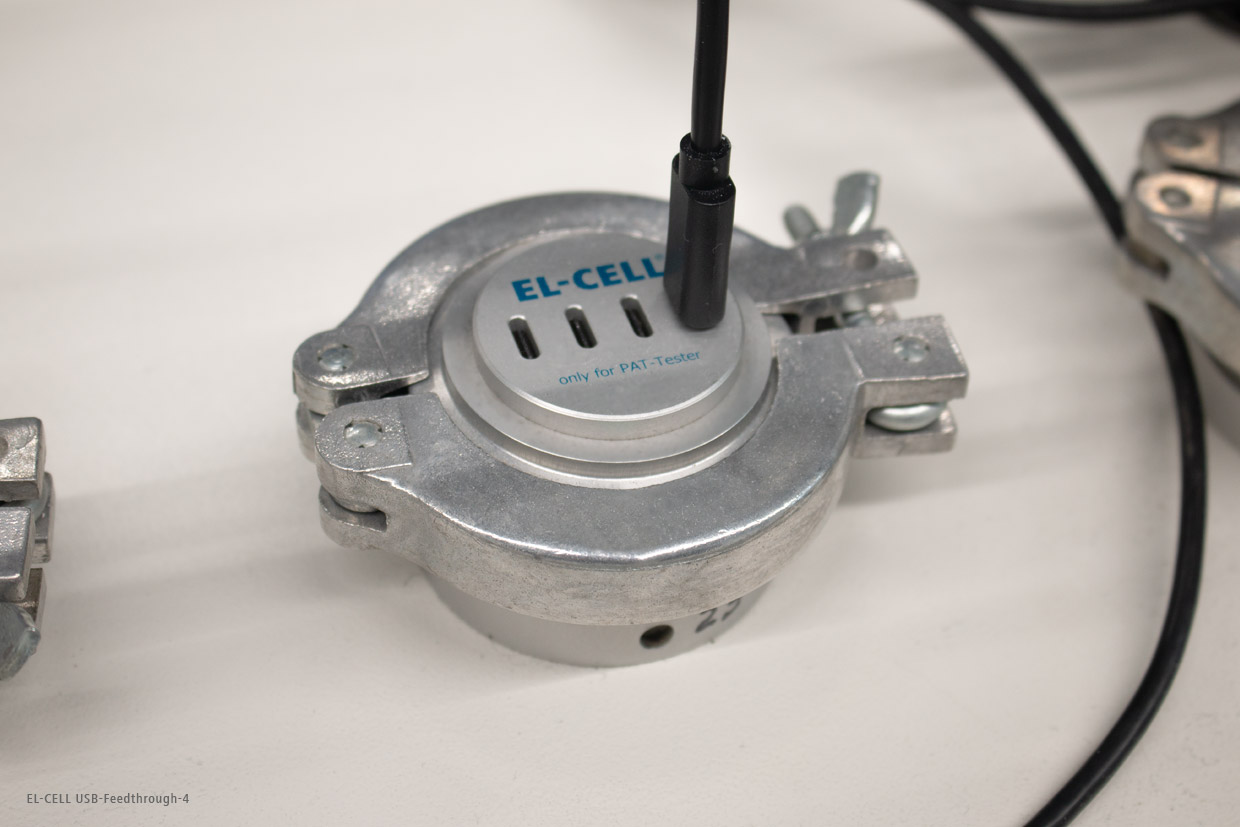

| Clamping ring for elastomer seal, DN 32-40 ISO-KF | VAC0041 |
| Centering ring ISO-KF 40 | VAC0042 |
