PAT-Cell-Solid
Advanced Battery test cell for solid-state cell chemistries.
Measure with an applied pressure of up to 300 MPa at 6 mm diameter!
PAT-Cell-Solid
Advanced Battery test cell for solid-state cell chemistries.
Measure with an applied pressure of up to 300 MPa at 6 mm diameter!
PAT-Solid-Core:
PAT-Core:
For Cell Stacks Using
Liquid Electrolytes!
10 mm
For Cell Stacks Using
Solid-State Electrolytes!
6 mm
Built-in Sensors:
Temperature Sensor
PAT-Cell-Solid
Advanced Battery test cell for solid-state cell chemistries.
Measure with an applied pressure of up to 300 MPa at 6 mm diameter!
-20 °C
Force Sensor
+80 °C
Gas Pressure Sensor
0
3 bar
9000 N
0
Advanced Battery test cell for solid-state cell chemistries.
Typical Use Cases
- Force Adjustment with up to 9000 N
- Force Measurement During the Electrochemical Cycle
- For Testing of Solid-State Batteries
- For Aprotic Chemistries with Liquid Electrolytes
Key Features
Applied pressure of up to 300 MPa at 6 mm / 115 MPa at 10 mm
Force adjustment and measurement, up to 9000 N
Temperature sensor, temperature range -20° C to 80° C

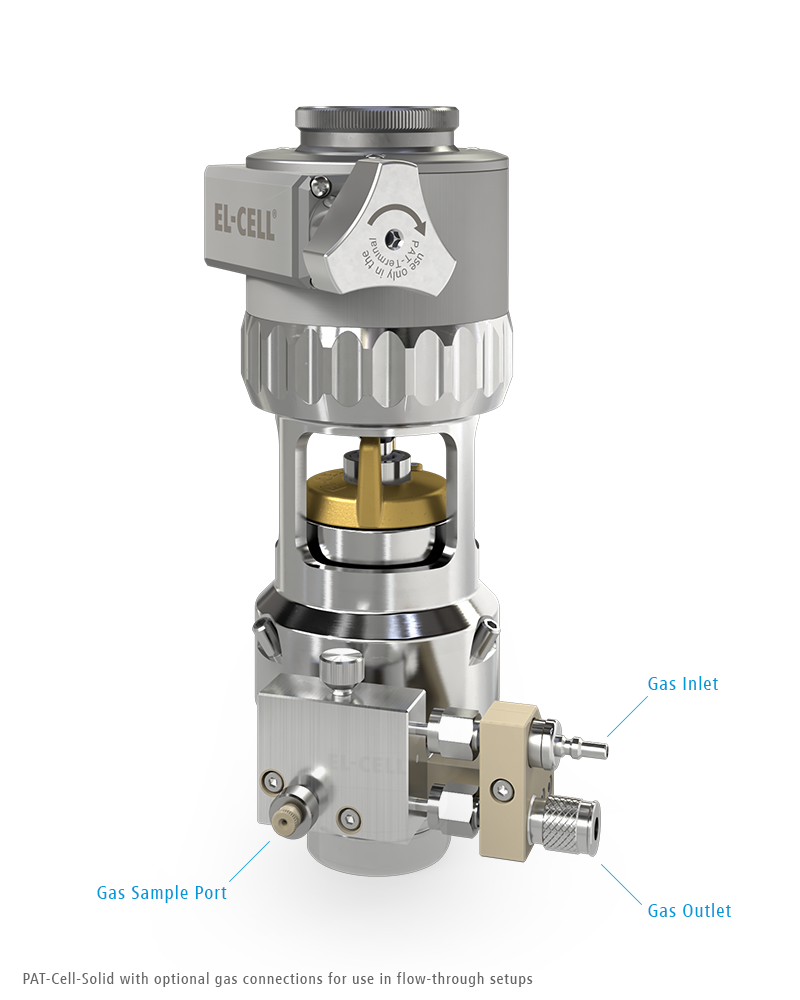

Optional gas pressure sensor and gas in- and outlet for flow-through setups
Modular cell stack configuration with PAT-Core and PAT-Solid-Core
Cableless cell connection, with PAT-Button (electronic cell tag)

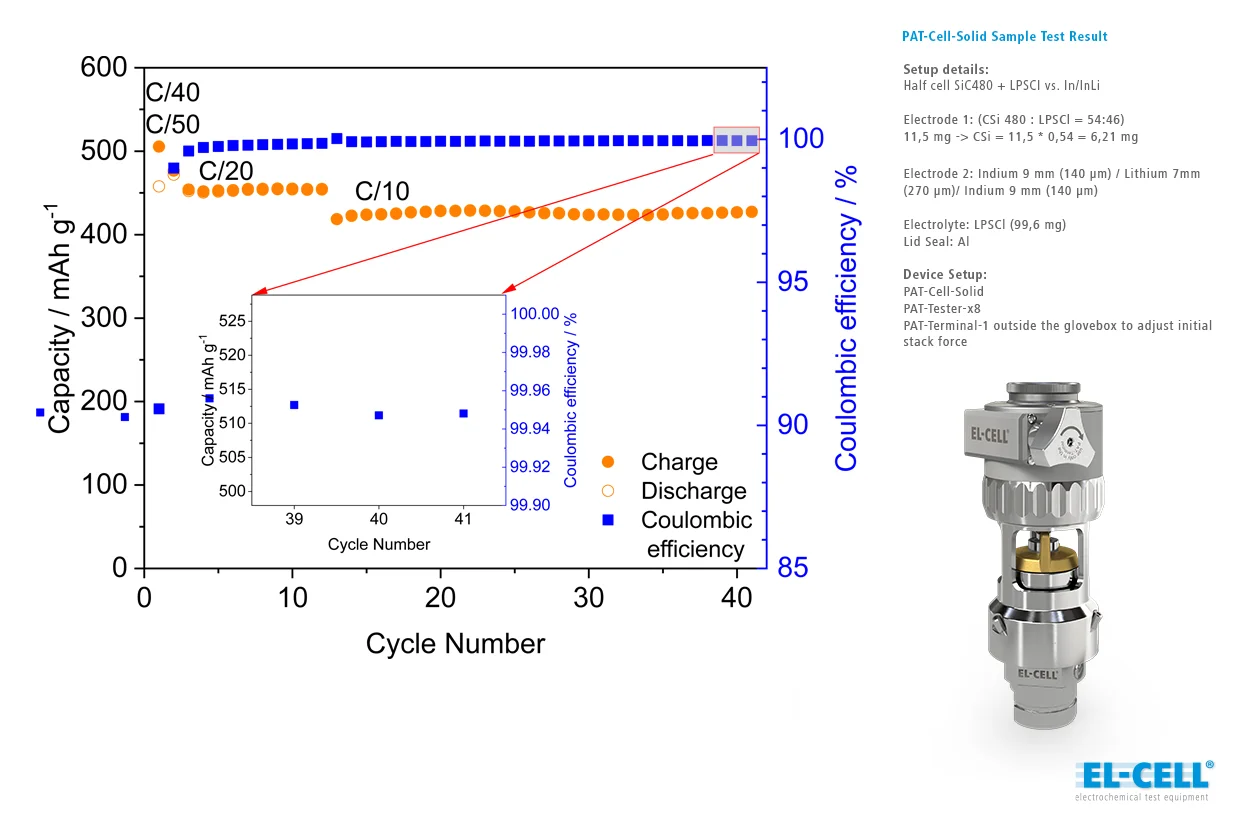

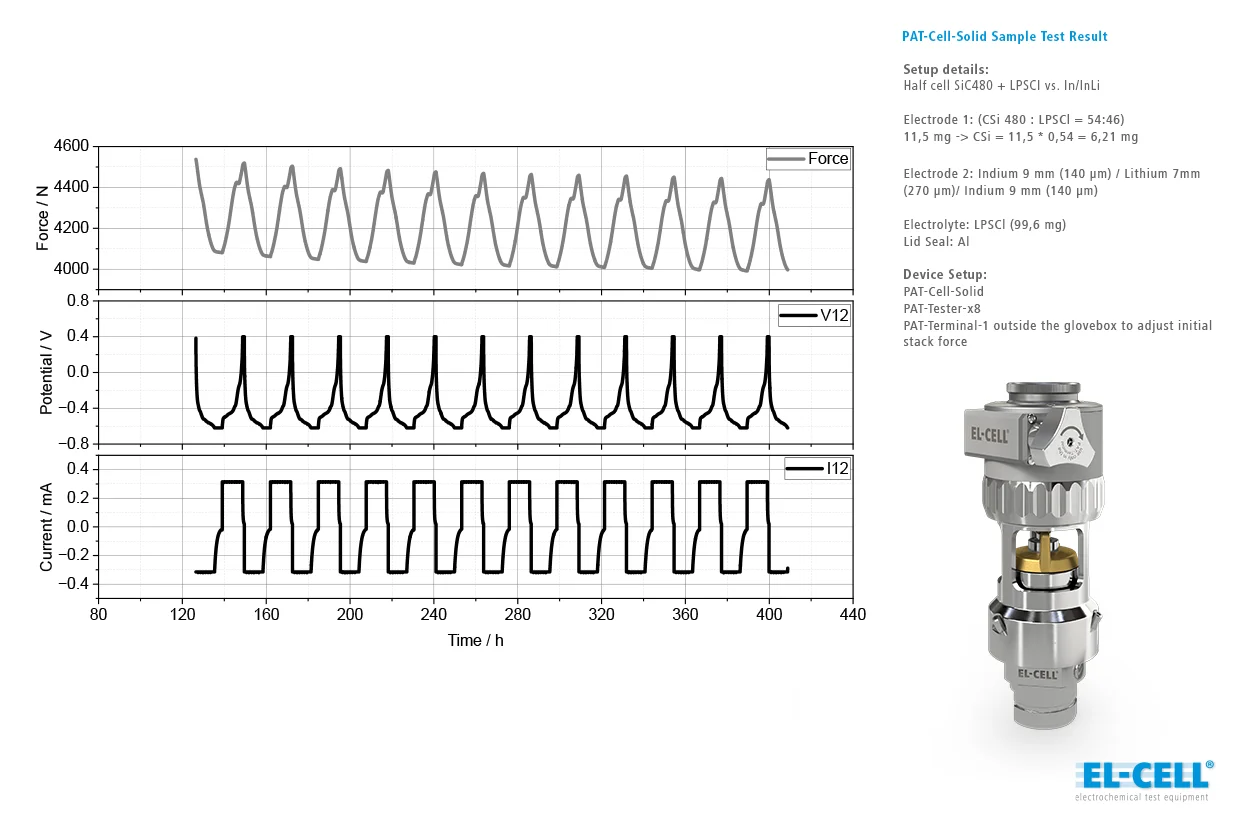

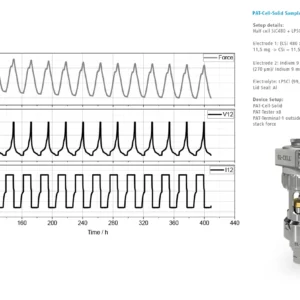

Sample Test Results
Product Description

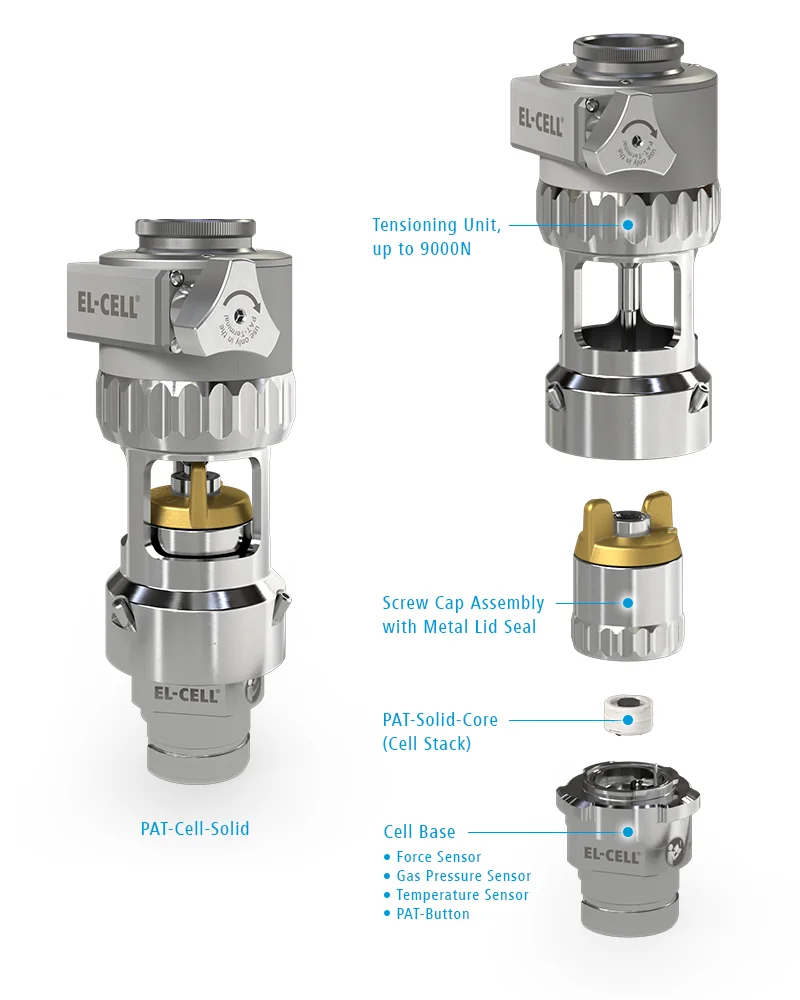

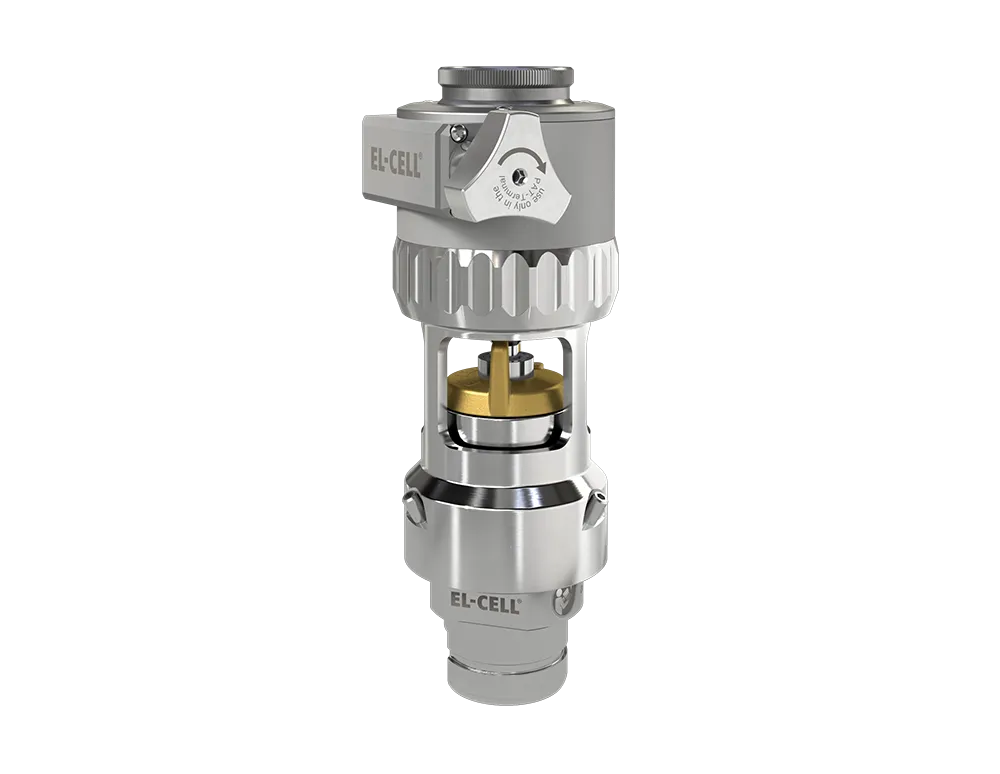

The PAT-Cell-Solid is an innovative, electrochemical battery test cell for characterizing solid-state batteries. It enables electrochemical measurements with a force of up to 9000 N on the cell stack, which can be adjusted outside the glovebox and monitored throughout the experiment. The pressure applied to the cell stack is thus up to 300 MPa with an electrode diameter of 6 mm.
Alongside the force sensor, the PAT-Cell-Solid features a temperature sensor, an optional gas pressure sensor, and gas connections. Its metal seals provide exceptional protection against the external atmosphere, enabling stable, long-term measurements with excellent Coulomb efficiency.

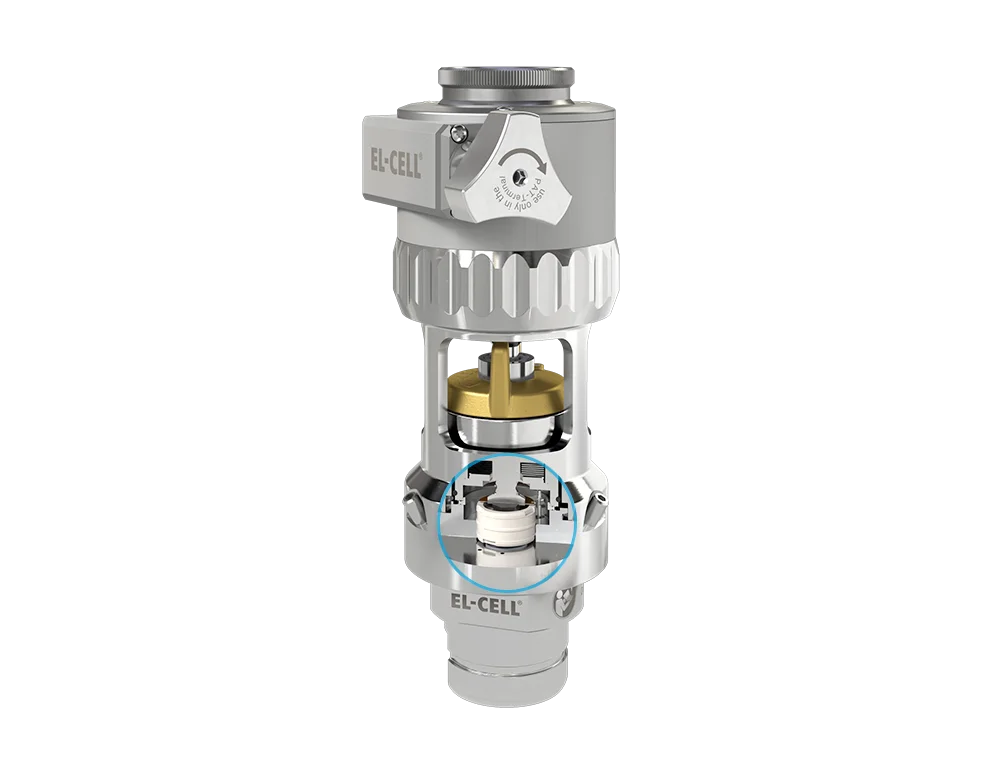

The cell stack is pressed in an external press in several steps using the Solid-State Pressing Device and the new PAT-Solid-Core. It is a variant of the modular PAT-Core and available for electrode diameters of 6 and 10 mm. After pressing the cell stack, the PAT-Solid-Core is inserted into the test cell for cycling. Additionally, the PAT-Cell-Solid enables cycling with aprotic liquid electrolytes using the proven PAT-Core components.
Like all PAT-Cells, the PAT-Cell-Solid connects without cell cables, reducing setup time and signal interference. It pairs seamlessly with the PAT-Tester-x-8 high-precision potentiostat for demanding research.

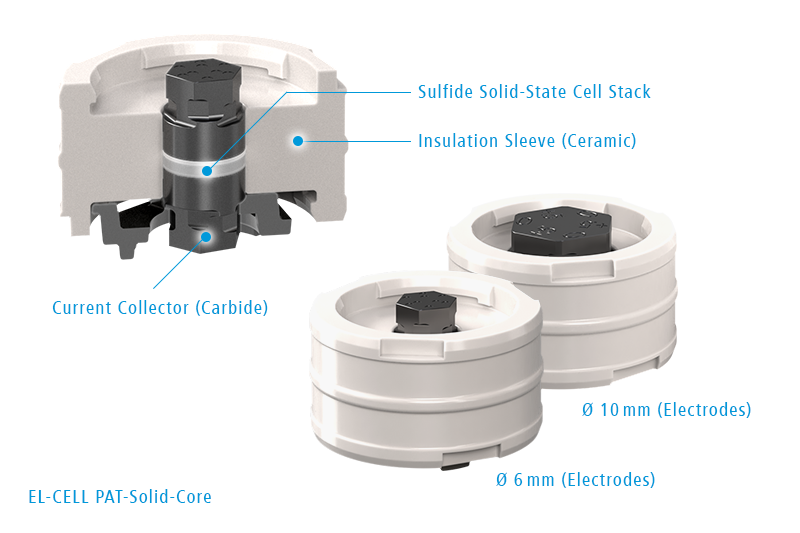

The PAT-Solid-Core for Testing Solid-State Batteries

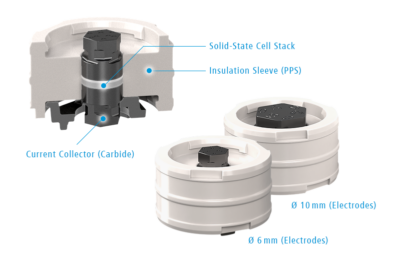

The PAT-Solid-Core is a new variant of the PAT-Core. It has been developed to enable the easy assembly and characterization of cell stacks with powdered solid-state electrolytes. The cell stack is pressed directly in the PAT-Solid-Core using the Solid-state Pressing Device in a multi-stage process outside the glovebox. It is then inserted into the test cell, for example, the PAT-Cell-Solid, for measurement.
The PAT-Solid-Core consists of a PPS insulation sleeve and carbide plungers to withstand high pressing loads. It is available in two variants that support electrode diameters of 6 and 10 mm, thus enabling different load levels during cycling.
Specifications
Specifications

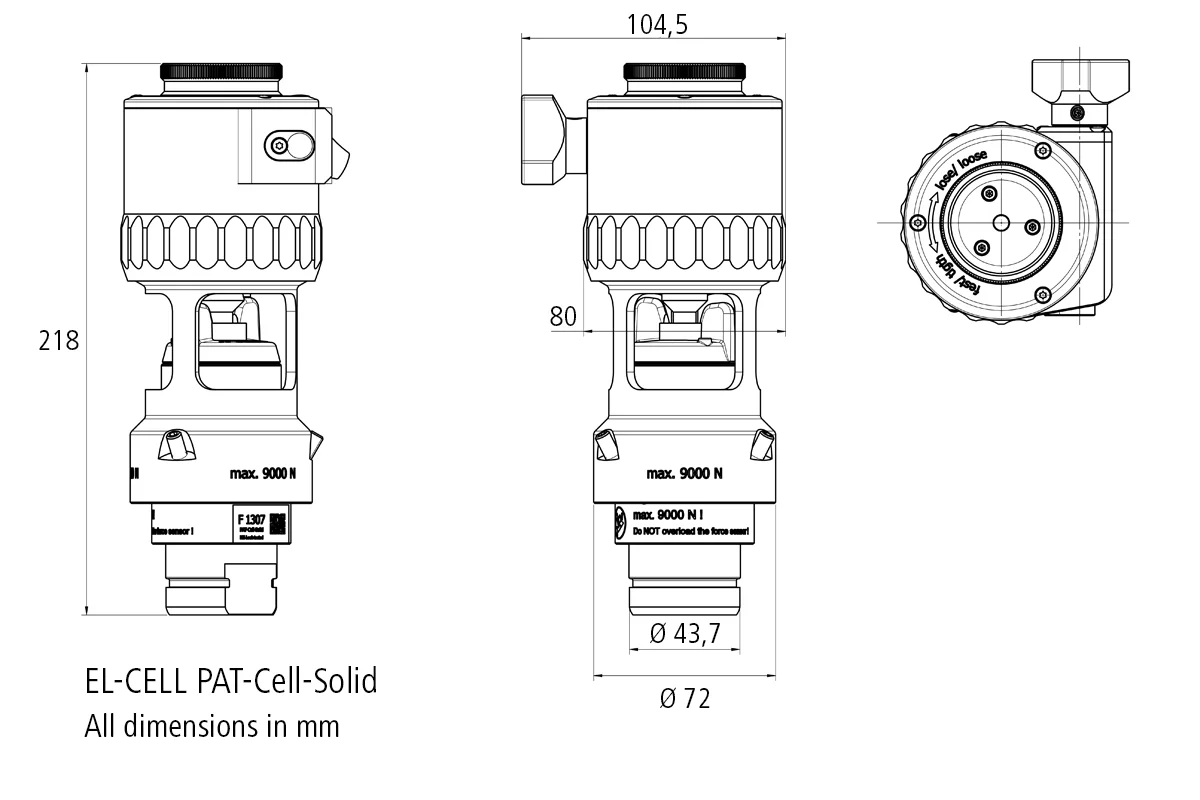

| Height | 218 mm |
| Width | 105 mm |
| Length | 80 mm |
| Weight | 3.5 kg |
| Electrode diameter (PAT-Solid-Core) | 6 or 10 mm |
| Electrode diameter (PAT-Core) | 18 mm |
| Separator diameter (PAT-Core) | 21.6 mm |
| Max. applied load on cell stack with PAT-Solid-Core | 300 MPa @ 6 mm diameter / 115 MPa @ 10 mm diameter |
| Max. applied load on cell stack with PAT-Core | 35 MPa @ 18 mm diameter |
| Operational temperature | -20 °C to 80 °C |
| Force sensor range | Up to 9000 Newton |
| Temperature sensor range | -20 °C to 80 °C |
| Gas pressure sensor (optional) | 0 to 3 bar abs. |
Compatible Potentiostats/Battery Tester
| Charge/Discharge/Impedance | Read Force Sensor | Read Pressure Sensor | Read Temperature Sensor | |
| PAT-Tester-x-8 | ||||
| Third-party Potentiostat |
Compatible PAT Docking Stations
| Charge/Discharge/Impedance | Read Force Sensor | Read Pressure Sensor | Read Temperature Sensor | |
| PAT-Clamp-1 | ||||
| PAT-Stand-1 | ||||
| PAT-Stand-1 U | ||||
| PAT-Stand-4 | ||||
| PAT-Stand-16 | ||||
| PAT-Chamber-16 | ||||
| PAT-Heater-4 |
Documentation
| Type | Release | Date | File Format | Size | ||
 | Data Sheet | February 2026 | 1.0 MB | Download |
Advanced Battery test cell for solid-state cell chemistries.
Measure with an applied force of up to 9000 N!
The PAT-Cell-Solid is an innovative, electrochemical battery test cell for characterizing solid-state batteries. It enables electrochemical measurements with a force of up to 9000 N on the cell stack, which can be adjusted outside the glovebox and monitored throughout the experiment. The pressure applied to the cell stack is thus up to 300 MPa with an electrode diameter of 6 mm.
Alongside the force sensor, the PAT-Cell-Solid features a temperature sensor, an optional gas pressure sensor, and gas connections. Its metal seals provide exceptional protection against the external atmosphere, enabling stable, long-term measurements with excellent Coulomb efficiency.
The cell stack is pressed in an external press in several steps using the Solid-State Pressing Device and the new PAT-Solid-Core. It is a variant of the modular PAT-Core and available for electrode diameters of 6 and 10 mm. After pressing the cell stack, the PAT-Solid-Core is inserted into the test cell for cycling. Additionally, the PAT-Cell-Solid enables cycling with aprotic liquid electrolytes using the proven PAT-Core components.
Like all PAT-Cells, the PAT-Cell-Solid connects without cell cables, reducing setup time and signal interference. It pairs seamlessly with the PAT-Tester-x-8 high-precision potentiostat for demanding research.
PAT-Cell-Solid
Typical Use Cases
- Force Adjustment with up to 9000 N During Cell Assembly
- Force Measurement During the Electrochemical Cycle
- For Testing of Sulphidic Solid-State Batteries
- For Aprotic Chemistries with Liquid Electrolytes
Features
Force adjustment and measurement, up to 9000 N
Temperature sensor, temperature range -20° C to 80° C Optional gas pressure sensor and gas in- and outlet for flow-through setups Modular cell stack configuration with PAT-Core and PAT-Solid-Core Optimzied lid for use with metal seals Cableless cell connection, with PAT-Button (electronic cell tag)Specifications
| Height | 218 mm |
| Width | 105 mm |
| Length | 80 mm |
| Weight | 3.5 kg |
| Electrode diameter (PAT-Solid-Core) | 6 or 10 mm |
| Electrode diameter (PAT-Core) | 18 mm |
| Separator diameter (PAT-Core) | 21.6 mm |
| Max. applied load on cell stack with PAT-Solid-Core | 300 MPa @ 6 mm diameter / 115 MPa @ 10 mm diameter |
| Max. applied load on cell stack with PAT-Core | 35 MPa @ 18 mm diameter |
| Operational temperature | -20 °C to 80 °C |
| Force sensor range | Up to 9000 Newton |
| Temperature sensor range | -20 °C to 80 °C |
| Gas pressure sensor (optional) | 0 to 3 bar abs. |
Compatible Potentiostats / Battery Testers
| Charge/Discharge/Impedance | Read Force Sensor | Read Pressure Sensor | Read Temperature Sensor | |
| PAT-Tester-x-8 | ||||
| Third-party Potentiostat |
Compatible PAT docking stations
| Charge/Discharge/Impedance | Read Force Sensor | Read Pressure Sensor | Read Temperature Sensor | |
| PAT-Clamp-1 | ||||
| PAT-Stand-1 | ||||
| PAT-Stand-1 U | ||||
| PAT-Stand-4 | ||||
| PAT-Stand-16 | ||||
| PAT-Chamber-16 | ||||
| PAT-Heater-4 |
Documentation
| Type | Release | Date | File Format | Size | ||
| Data Sheet | February 2026 | 1.0 MB | Download |
