PAT-Channel-1
Single channel station for one test cell

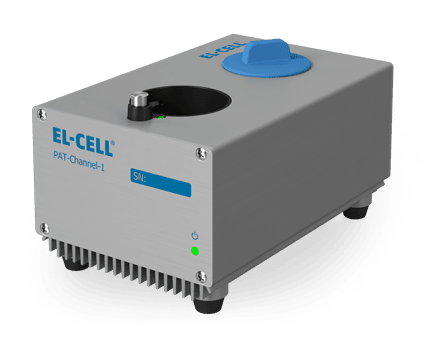

The PAT-Channel-1 is a fully featured, single-channel potentiostat/galvanostat/impedance analyzer that is operated in conjunction with a PAT-Controller. It has a docking socket for one PAT series test cell and external connectors to connect a test cell of a different type or a separate docking station.
This enables, for example, another docking station with a PAT-Cell to be tested in a temperature cabinet at elevated temperatures, that would otherwise be too high for the tester’s electronics.
Product overview
Features
Features
Fully equipped PStat/GStat/EIS, +-7V control voltage, 100 mA current PAT docking socket D-Sub port for active shielded cell cable, I2C bus signals and analog input USB 2 port for additional sensor data USB 3 type C port for connection to a PAT-Controller boxSpecifications
(Last update: November 2023)
| Length | 164 mm |
| Height | 97 mm |
| Width | 105 mm |
| Weight | 1.3 kg |
| Temperature operation range | -20 to + 40 °C |
| Humidity | Non-condensing |
Accuracy Contour Plot
General
| # Channels per device | 1 |
| Control Voltage | -7 V to +7 V |
| Compliance Voltage | -8 V to 8 V (no load) |
| Current | ±100 mA |
| Cell connection / Electrode connection | 3 electrodes plus sense wires, Connection matrix |
| ADC | 2 x 24 Bit |
| DAC | 1 x 18 Bit |
| Bandwidth ranges | 500 kHz |
| 50 kHz | |
| 5 kHz | |
| Slew rate | 2.5 V / µs |
| Sampling interval (rate) | 1 ms |
| Input Impedance | >100 MΩ || 20 pF |
| Computer Interface | 1 GBit Ethernet, Runs standalone, Multiuser |
Voltage
| Acquisition voltages | Full cell voltage |
| Both half-cell voltages | |
| Auxiliary voltage | |
| Measurement accuracy | ±0.02% of FSR (Full scale range) |
| Measurement noise floor | 30 μV peak-peak typical |
| Control resolution | 57 μV (18 Bit) |
Current
| Current ranges | ±100 mA |
| ±10 mA | |
| ±1 mA | |
| ±100 μA | |
| Autorange | |
| Measurement accuracy | ±0.05% of FSR |
| Measurement noise floor | <1 μA @ 100mA |
| <100 nA @ 10mA | |
| <10 nA @ 1mA | |
| <1 nA @ 100μA | |
| Control resolution | 1 nA min. (18 Bit) |
Impedance (each channel)
| Frequency range | 100 μHz to 100 kHz |
| Impedance modes | PEIS and GEIS (each with simultaneous measurement of full- and half-cell impedances) |
| Impedance range | 1 mΩ to 100 MΩ |
| EIS quality indicator | SFDR (Spurious Free Dynamic Range) |
| EIS drift correction | yes |
| EIS adaptive amplitude | yes |
Other
| Additional Measurement (each channel) | Digital (I²C) sensor signal, e.g. for cell temperature |
| Analog sensor signal, e.g. for gas pressure | |
| Calibration | Fully automatic self-calibration with internal voltage reference and three internal calibration cells |
| Software | EL-Software with : |
| Experiment designer | |
| Cell and material management with database | |
| Script editor | |
| Live data monitoring | |
| Analysing and reporting capabilities | |
| Cell Identification | PAT-Button with unique serial number stored in EEPROM |
Manual
 | PAT-Channel-1 Manual | |
| Release | 1.2 | |
| Date | October 2024 | |
| Type | ||
| Size | 1 MB | |
| Download |
